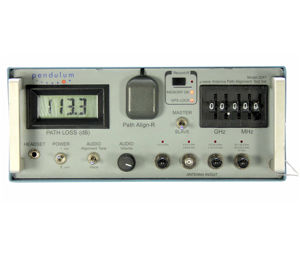

Spectracom (formerly XL Microwave) 2241
Microwave Antenna Path Alignment Test Set, SMA (m)
Rent or Lease • Buy Used From $9,995
This Spectracom 2241 microwave antenna alignment tool comes equipped with cutting edge path align test capabilities. The Path Align-R test set is a complete test solution designed to quickly and accurately optimize the transmission path (link) between two microwave antenna sites. Two battery-operated Path Align-Rs, one for each tower, are used for the alignment. Each test set drives its respective antenna directly, while receiving the signal from the other test set, simultaneously. Both units indicate the received path loss, in dB, with 0.1 dB resolution (to -100 dB sensitivity). The Path Align-R provides duplex voice communications over the antenna link, using the include headset, allowing two technicians to communicate with each other. The Record-R contains an embedded GPS receiver, which provides accurate date/time and position information to be added to the path loss data. This logged data is saved in non-volatile memory for later transfer (download) to a PC computer where the data can be viewed, saved to disk and a hard copy printed or sent as an e-mail attachment over the Internet. Each record contains: Model No., Serial No., Date, Time (UTC), Longitude, Latitude, Frequency, & Path Loss (with GPS Lock). If no GPS Lock then record contains: Model No., Serial No., Frequency, & Path Loss without date/time/location data. Consists of two test sets.
Request a quote and begin the process to acquire the Spectracom 2241 microwave antenna alignment tool for rent or purchase today.
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-AC Adapter 100-240V 1.0A IN-15V 1A OUT (XLM price $100.00 / pn 321) CAN INCL POWER CORD PN 17250 **Can be repld by all in one p/n 70231086 (100-240V - 0.3A In, -15V - 0.8A Out)
Qty: 2 -
LAB/VER-Adapter, N(m) to SMA(f)
Qty: 2 -
NO/VER-Power Cord.
Qty: 0 -
LAB/VER-ADAPTER BARREL N(F) TO N(F)
Qty: 2 -
USER INFO CARD REV P FILE;( PDF XL MICROWAVE )
Qty: 1 -
LAB/VER-3 Meter SMA cable (M-M) (XL Microwave cable $295.00 part number 324) (Gap Wireless PN TMC-SLULL18-SMSMR-03.00M)
Qty: 2 -
LAB/VER-Headset with Microphone
Qty: 2 -
LAB/VER-RECHARGE BATT PACK 12V 2300.AH/SLA(EPP-100C) *** ORDER P/N EPP-100C FROM EVS $24.98 ***
Qty: 2 -
SEE PN: AC-ADAPTER LAB/VER-AC Adapter 100-240V 1.0A IN-15V 1A OUT (XLM price $100.00 / pn 321) **Can be replaced by all in one p/n 70231086
Qty: 0 -
Hard transit case, Pelican 1550
Qty: 0 -
LAB/VER-Back-Pack, Instrument Weather-Resistant
Qty: 2 -
LAB/VER-DB9 (m) to DB9 (f) RS232 3M cable (CDW PN 2886839)
Qty: 2 -
LAB/VER-USB A to B cable
Qty: 2 -
SW-LOG VIEW-R CD VER 7.0 (WITH MANUAL AND SPREADSHEET)
Qty: 1 -
SW-Documentation SW on CD (Current Rev. is 22)
Qty: 1 -
NO/VER-Wrench 5/16"
Qty: 2
