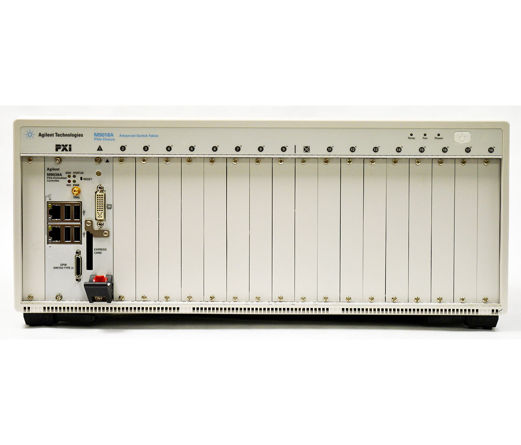

Keysight Technologies M9018A
PXIe 18-Slot Chassis
Rent or Lease
PXIe 18-Slot Chassis with Gen 2 performance, 16 PXIe Hybrid slots, mix of x4 and x8 links to peripheral slots.
The M9018A chassis provides the ultimate in flexibility, compatibility, and performance. With 16 PXIe Hybrid slots, it allows the system designer to mix and match the number and location of PXIe and PXI-1 hybrid compatible modules essentially at will. It contains an advanced PCIe switch fabric that operates up to Gen 2 speeds and can be configured for optimal performance with most PXIe controller. The switch fabric is also configurable for peer-to-peer communications and any peripheral slot can communicate with any other peripheral slot without utilizing the system slot PCIe links. Combine the M9018A with the M9021A PCIe Cable Interface and M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.
- Configurations
- Resources
BASE, M08, M9036A, WE6, Y1213A
See Configuration Details
-
BASE
PXIe Chassis: 18-Slot, 3U, 8Gb/s
-
M08
Memory, 8GB Ram
-
M9036A
PXIe Embedded Controller: Dual Core, 4GB Ram, 160 SSD, 4 Gb/s
-
WE6
Windows Embedded Standard 7 (64 Bit)
-
Y1213A
PXI EMC Filler Panel Kit: 5 Slots
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power Cord Assembly Heavy Duty with Square Plug
Qty: 1 -
Cable GPIB for PXIe Controller
Qty: 1 -
Adapter DVI - VGA
Qty: 1 -
Embedded Controller PXIe
Qty: 1 -
Filler Panel Kit PXI EMC (Set Of 5)
Qty: 1 -
Chassis PXIe 1S Filler Kit (18 Single Panels and 1 3-Slot Panel)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries, v18.2.28229
Qty: 1
