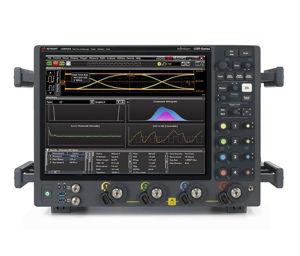

Keysight (Formerly Agilent) UXR0334A

Achieve industry-leading performance for RF systems with the lowest noise and jitter floors and the highest signal fidelity with the Keysight UXR0334A Infiniium UXR real-time oscilloscope.

The Keysight (formerly Agilent) UXR0334A offers 10-bit high-definition ADC, 20 femtoseconds (typical) of intrinsic jitter for exceptional jitter characterization, deep memory and hardware-accelerated processing for high precision signal acquisition. The UXR0334A can effectively meet your toughest test-system challenges and requirements with its bandwidth upgradability. It also includes high-speed SDA and clock recovery, user-defined functions, and an optional calibration module.

The Keysight UXR0334A oscilloscope's correction filters ensure flat frequency magnitude and phase response.

Keysight UXR0334A Features and Specifications:

• Number of channels: Four
• Maximum bandwidth: 33GHz
• Maximum sampling rate: 128GSa/s
• Input connector type: Ruggedized 3.5mm male with AutoProbe II jack
• Memory depth per channel: 200Mpts (standard) and 2Gpts (maximum)
• Input impedance: 50 ohmes, plus/- 3 percent
• Displayed input sensitivity: 1mV/div to 1V/div
• Hardware sensitivity: 32mV full scale to 8.0V full scale
• Vertical resolution: 10 bits, > 14 bits with averaging
• ENOB typical:
  - At > 400 mVfs: 5.9
  - At 40 mVfs: 5.3
• Offset accuracy: plus/- 1 percent of channel offset 1 percent of full scale
• Sampling resolution: 7.8125 ps/sample

The Keysight (formerly Agilent) UXR0334A Infiniium UXR real-time oscilloscope (four-channel, 33GHz, 128GSa/s) is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
