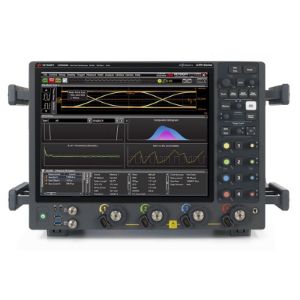

Keysight (Formerly Agilent) UXR0204A
4Ch 20 GHz, 128 GSa/s,Infiniium UXR Real-Time Oscilloscope
Rent or Lease
Achieve industry-leading performance, ultra-low noise, and high signal fidelity for the fastest systems with the Keysight UXR0164A Infiniium UXR real-time oscilloscope.
The Keysight (formerly Agilent) UXR0164A features extremely low noise floors, 10-bit high-definition ADC vertical resolution, femtoseconds of intrinsic jitter, deep memory, and hardware-accelerated processing for high-precision signal acquisition.
The UXR0164A is the perfect solution for digital and RF technologies and can effectively meet the toughest test-system challenges and requirements with its upgradability feature. It also includes high-speed SDA and clock recovery, user-defined functions, and an optional calibration module.
Keysight UXR0164A Features and Specifications:
- Number of channels: Four
- Maximum bandwidth: 16GHz
- Maximum sampling rate: 128 GSa/s
- Input connector type: Ruggedized 3.5mm male with AutoProbe II jack
- Memory depth per channel: 200Mpts (standard) and 2Gpts (maximum)
- Minimum input power required: 100Vac
- Input impedance: 50 ohmes, plus/- 3 percent
- Vertical resolution: 10 bits, > 14 bits with averaging
- Offset accuracy: plus/- 1 percent of channel offset 1 percent of full scale
The Keysight (formerly Agilent) UXR0164A Infiniium UXR real-time oscilloscope (four-channel, 16GHz, 128 GSa/s) is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Wrench - Torque 8lb-in, 5/16 Inch
Qty: 1 -
NO/VER - Anti-Static ESD Mat with ground cord
Qty: 1 -
LAB/VER- APC 3.5(f) to APC 3.5(f) adapter
Qty: 5 -
LAB/VER-SMA 50 Ohm Termination (M) (Keysight PN obsolete, use Digi-Key PN 8018-6005-ND @ $20.18, a/o 9/12/18)
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-USB Mini Keyboard
Qty: 1 -
NO/VER-Connector saver collars. Issued as each
Qty: 1 -
NO/VER Heavy Duty Power Cord (square connector) - sub available on e-BAY per lab @ $11.05/ea.
Qty: 1 -
Heel Ground Strap
Qty: 2 -
SCOPE CASE FROM AUSTIN FOAM PRODUCTS
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Data Sheet
