Keysight (Formerly Agilent) U8485A
33 GHz USB Thermocouple Power Sensor (-35 dBm to +20 dBm)
Rent or Lease • Buy Used From $1,400
Perform measurements down to DC range

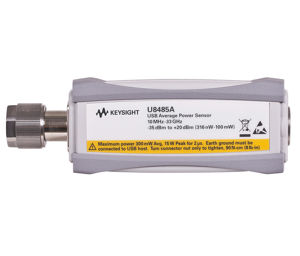

The Keysight (formerly Agilent) U8485A is a USB Thermocouple Power Sensor. The U8485A is part of the U8480 series, which is Keysight's first series of power sensors with the capability to measure down to DC (with option 200). This is especially useful for Signal Source/Network Analyzer calibration and power references as well as EMC applications.
Built in external trigger in
External trigger will enable accurate trigger of small signals close to the signal noise floor. With the built-in trigger in connection on the Keysight U8485A power sensors; you can connect an external trigger signal from a signal source or the device under test directly to the USB sensor through a standard BNC to SMB cable.
Measurements direct from your PC
The U8485A is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.
Keysight U8485A Key Features and Specifications:
- Frequency range of DC/10MHz to 33 GHz
- Fastest measurement speed for thermocouple sensor, > 400 readings/s (free run/fast buffer mode)
- Best-in-class power linearity of less than 0.8%
- Wide dynamic range from -35 dBm to 20 dBm
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) or National Physical Laboratory (NPL)
- BenchVue software enabled
If you want the Keysight U8485A for rent or purchase, get in touch with TRS-RenTelco. Our skilled technicians and metrologists calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant lab. Request a quote no
- Configurations
- Resources
100, U2000A-301
See Configuration Details
-
100
Connector; 3.5mm
-
U2000A-301
Accessory Power Sensor Cable; 5-ft (1.5m)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-N (m) to 3.5 mm (f) can also use SM3355
Qty: 1 -
LAB/VER-Main assembly cable 1.5M (Alternate AGITEC PN# U2031A @$146)
Qty: 1 -
LAB/VER-TRIGGER CABLE - BNC(M) TO SMB(F) 50OHM 1.5METER LENGTH cable is option U2032A (requires quote) - @$164.68/ea
Qty: 1 -
SW-U8481-90001 Product Reference June 2016, N1918-90001 Power Analysis Manager
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
