Keysight (Formerly Agilent) U4301B

The Keysight Technologies, Inc. high speed U4301B PCI Express 3.0 Analyzer Module is a protocol analyzer supporting all PCI Express applications from Gen1 through Gen3, at speeds, including 2.5 GT/s (Gen1) and 5.0 GT/s (Gen2) through PCIe 8 GT/s (Gen3), and with link widths from x1 to x16. The U4301B analyzer captures and decodes PCI Express data and displays it in a packet viewer window.

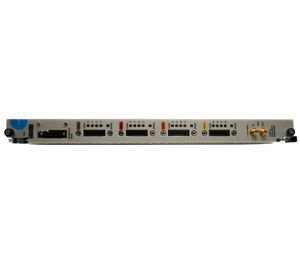

The Keysight U4301B analyzer is a blade that installs into an AXIe two-slot M9502A or five-slot M9505A. Here are the key features of the Keysight, formerly Agilent U4301B:

• PCIe Gen1 (2.5 GT/s), Gen2 (5 GT/s), and Gen3 (8 GT/s) support
• Auto link configuration 1x to x16 link width (auto speed, auto link width, auto link reversal, auto polarity)
• LTSSM analysis with equalization reporting
• Power state analysis includes L1 substate operation
• Flow control credit and performance analysis
• PCIe, NVMe, AHCI, and configuration space decoding and analysis
• Compact AXIe modular system configuration

The Keysight U4301B is available for rent and lease at TRS-RenTelco. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.
