Keysight (Formerly Agilent) N7015A
USB Type C Test Fixture
Rent or Lease • Buy Used From $6,557

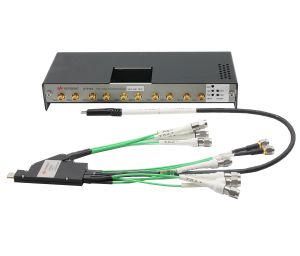

The N7015A type C test kit provides the best-in-class performance up to 30 GHz of de-embeddable bandwidth, enabling signal verification and debug of USB 3.1 10 Gbps designs and other high-speed signal standards to support type C connector.
The N7015A high speed USB type C fixture breaks out 4 lanes of high speed signals for signal measurement or injection as well as low speed power and control lines to a secondary fixture (N7016A) for monitoring and control. The flexible fixture kit enables signal accessibility and probing to the USB 3.1 device, host (upstream and downstream) ports. The N7016A low speed fixture manages power and control lines from the N7015A to support termination requirements, and test configuration as well as connection to a power delivery controller.
The N7015A fixture is reversible, meaning the plug can be flipped 180 degrees and will still allow testing, without any damage or error. Its unique design allows two fixtures to be used side-by-side and/or top-to-bottom. Whether connected side-by-side or stacked, the fixtures meet the minimum spacing allowed for in the specification.
Key Features & Specifications
- 20 GHz bandwidth (at -3 dB), de-embeddable up to 30 GHz
- Enables signal verification and debug of USB 3.1, DisplayPort 1.3, Thunderbolt 2/3 and MHL 3.3/SuperMHL
- Breaks out four lanes of high-speed signals for signal measurement or injection as well as low-speed power and control lines to a secondary fixture (N7016A Type-C low-speed fixture)
- Comes with the form factor to fit two fixtures side-by-side and/or top-and-bottom
- Configurations
- Resources
016
See Configuration Details
-
016
Type-C Low-Speed Signal Access And Control Fixture
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER- 6 pin terminal block
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 1 -
NO/VER-SMALL OPEN END 7MM WRENCH FOR ( N7015A TYPE C TEST KIT )
Qty: 1 -
LAB/VER-REPLACEMENT FUSES,SET OF 4 FOR ( N7015A TYPE C TEST KIT)
Qty: 4 -
LAB/VER-TYPE C INTERCONNECT ASSEMBLY FOR ( N7015A TYPE C TEST KIT)
Qty: 1 -
LAB/VER-N7015A TYPE C PLUG FIXTURE,( N7015A TYPE C TEST KIT)
Qty: 1 -
NO/VER-PLASTIC CARRY CASE FOR ( N7015A TYPE C TEST KIT)
Qty: 1 -
MAN-QUICK START AND ACCESSORIES GUIDE FOR ( N7015A TYPE C TEST KIT)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
N7015A Data Sheet
