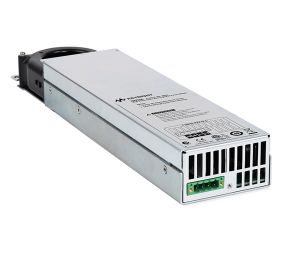

Keysight (Formerly Agilent) N6752A
100W (50V/10A) DC Power Supply Module
Rent or Lease
A 50V, 10A, 100W DC power module, the Keysight N6752A delivers programmable voltage and current, measurement, and protection. It comes with auto-ranging and other high-performance features and offers low noise, high accuracy, and rapid programming speeds.
The N6752A has high-speed test extensions that offer an oscilloscope-like digitizer, making system configuration easy and increasing measurement accuracy when viewing high-speed transient or pulse events within the device-under-test (DUT). The N6752A's auto-ranging output capabilities enable one power supply to do the job of several traditional power supplies.
Keysight N6752A Features and Specifications:
- Voltage rating: 0 to 50V
- Current rating: 0 to 10A
- Power rating: 100W maximum
- Voltage programming accuracy: 0.06% 19 mV
- Current measurement (readback) accuracy: 0.1% 20 mA
- Ripple and noise (20Hz to 20MHz)
-Constant voltage rms: 4.5 mV
-Constant voltage peak-to-peak: 350 uV
-Constant current rms: 2 mA
The Keysight (formerly Agilent) N6752A power supply module is available for rent or lease at TRS-RenTelco with 24/7 customer support. Contact us at 800-874-7123 for more information.
