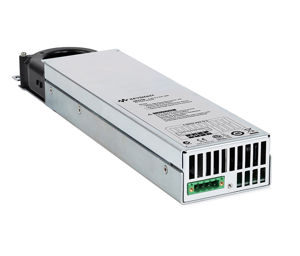

Keysight (Formerly Agilent) N6732B
50W (8V/6.25A) DC Power Supply Module
Rent or Lease
Key Specifications : Output Ratings Voltage: 8 V Current (derated 1% per ?C above 40?C): 6.25 A / 12.5 A Power: 50 W / 100 W Programming Accuracy (at 23?C ?5?C after 30 minute warm-up. Applies from min. to max. program) Voltage: 0.1% 19 mV Current: 0.15% 20 mA Ripple & Noise from 20 Hz to 20 MHz CV peak-to-peak: 12 mV CV rms: 2 mV (PARD) CC rms: 4 mA Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead) Voltage: 6 mV Current: 2 mA
Read More
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Jumper Assembly 1 Conductor Current
Qty: 2 -
NO/VER- Connector Plug. 4 position
Qty: 1 -
NO/VER-Screw, M3x0.5, 6MM- T10
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
054
See Configuration Details
-
054
High-Speed Test Extensions
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Jumper Assembly 1 Conductor Current
Qty: 2 -
NO/VER- Connector Plug. 4 position
Qty: 1 -
NO/VER-Screw, M3x0.5, 6MM- T10
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
