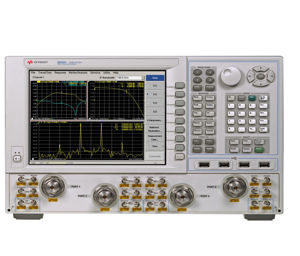

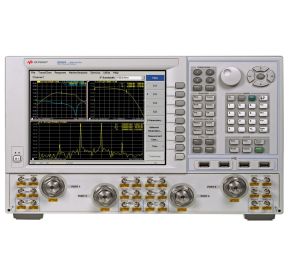

Keysight (Formerly Agilent) N5245AS-285
2-port, 10 MHz - 50 GHz PNA-X Network Analyzer Hi Pwr Config
Rent or Lease
The Keysight (formerly Agilent) N5245AS-285 is a network analyzer of the PNA-X variant offered by Keysight. This analyzer comes with option H85, which is specifically configured for making high-power measurements. The N524xAS Option H85/285 removes the bias-tees between the source attenuators and the test port couplers. This extends the maximum port power that the analyzer can safely handle to 43 dBm. Selecting OptionH85/285 adds internal attenuators and cables.
Specifications
- Maximum Frequency: 50 GHz
- Dynamic Range: 124 dB
- Output Power: 13 dBm
- Trace Noise: 0.002 dBrms
- Number of Built-In Ports : 2 ports
- Harmonics: -60 dBc
- Noise Floor: -111 dBm
- Best Speed at 201 Point, 1 Sweep: 5.5 ms
- Network Analyzer Series: PNA-X (Most Advanced and Flexible)
- Benchtop: Yes
Applications
- S-Parameters
- Noise Figure
- Gain Compression
- X-Parameters
- Balance Measurements
- Pulsed RF
- IMD
Components
- Antennas
- Mixers/Frequency Converters
- Amplifiers
Get the Keysight (formerly Agilent) N5245AS-285 PNA-X network analyzer from TRS-RenTelco for rent or for lease with the added benefit of our 24/7, year-long customer support. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.
- Configurations
- Resources
010, 080, 083, 086, 200, 219, H85
See Configuration Details
-
010
Time-domain Measurements
-
080
Frequency Offset Measurements
-
083
Vector And Scalar Calibrated Converter Measurements
-
086
Gain Compression Application
-
200
2 Ports, Single Source
-
219
Add Extended Power Range To 2 Port Analyzer (no Bias-tees)
-
H85
High Power Configurable)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 2 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-Front impact cover dark grey units use PN N9040-40007
Qty: 1 -
NO/VER-Rear impact cover dark grey units use pn N9040-40008
Qty: 1 -
LAB/VER-CABLE ASSY, RF JUMPER 2.4mm
Qty: 6 -
Void- SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
