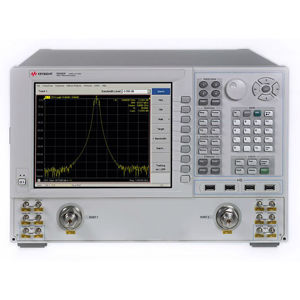

Keysight (Formerly Agilent) N5242A-200
2-port, 26.5 GHz PNA-X Network Analyzer, 3.5 mm (m)
Rent or Lease
The Keysight N5242A-200 is part of the brand's PNA Series and builds on Keysight (formerly Agilent)'s 40-year legacy of excellence to deliver new standards in speed, accuracy, and versatility for microwave network analysis. The PNA's architecture includes high quality, stable hardware and flexible software. The standard PNA is suitable for testing passive and active devices such as filters and amplifiers. Users can easily add options to test mixers, harmonics, intermodulation distortion (IMD), pulsed-RF, antennas and millimeter-wave (mmwave) components.
Key features of the Keysight (formerly Agilent) N5242A-200:
- High dynamic range: 127 dB at 20 GHz at test port
- Low trace noise: 0.002 dB rms at 1 kHz bandwidth
- Fast measurement speed: 4.5 to 26 isec/point
- High stability: 0.05 dB/degrees Celsius
- Modern calibration capabilities and wide-range of ECal modules
- Advanced applications for mixer and pulse measurements Single-ended and balanced measurements - 32 measurement channels, unlimited traces, and 16,001 points per channel
- Connectivity with Open Windows(R) XP, 6 USB connectors, LAN, and GPIB
At TRS-RenTelco we have the Keysight (formerly Agilent) N5242A-200 available for both rent and lease. Request a quote and start using this product today.
- Configurations
- Resources
010, 200, 898
See Configuration Details
-
010
Time-Domain Measurements
-
200
2 Ports, Single Source
-
898
Built-In Performance Test Software For Standards Compliant Calibration, Perpetual License
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 2 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
LAB/VER-RF Cable Front/REAR Panel Jumper
Qty: 6 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-Front impact cover dark grey units use PN N9040-40007
Qty: 1 -
NO/VER-Rear impact cover dark grey units use pn N9040-40008
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1 -
Void- SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
010, 029, 080, 083, 084, 086, 087, 200, 219, 224
See Configuration Details
-
010
Time Domain Measurements
-
029
Fully-Corrected Noise-Figure Measurements To 26.5 Ghz
-
080
Frequency Offset Measurements
-
083
Vector And Scalar Calibrated Converter Measurements
-
084
Embedded Lo Measurements
-
086
Gain Compression Application
-
087
Intermodulation Distortion Measurements
-
200
2 Ports, Single Source
-
219
Add Extended Power Range And Bias-Tees To 2 Port Analyzer
-
224
Add Internal Second Source, Combiner And Mechanical Switches To 2-Port Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 3 -
LAB/VER-Adapter 3.5mm (F-M)
Qty: 1 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
NO/VER cable guard
Qty: 1 -
LAB/VER-RF Cable Front/REAR Panel Jumper
Qty: 16 -
NO/VER-6 HOLE HANDLE KIT,GREY see #5023-1399 for sub
Qty: 1 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
LAB/VER-Semi rigid cable assy
Qty: 1 -
SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
008, 010, 021, 025, 200
See Configuration Details
-
008
Pulsed-Rf Measurements
-
010
Time Domain Measurements
-
021
Add Pulse Modulator To Internal First Source
-
025
Add Four Internal Pulse Generators
-
200
2 Ports, Single Source
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 2 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
NO/VER cable guard
Qty: 1 -
LAB/VER-RF Cable Front/REAR Panel Jumper
Qty: 6 -
NO/VER-6 HOLE HANDLE KIT,GREY see #5023-1399 for sub
Qty: 1 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
008, 010, 021, 022, 025, 200, 898
See Configuration Details
-
008
Pulsed-Rf Measurements
-
010
Time Domain Measurements
-
021
Add Pulse Modulator To Internal First Source
-
022
Add Pulse Modulator To Internal Second Source
-
025
Add Four Internal Pulse Generators
-
200
2 Ports, Single Source
-
898
Built-In Performance Test Software For Standards Compliant Calibration, Perpetual License
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 3 -
LAB/VER-Adapter 3.5mm (F-M)
Qty: 1 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
LAB/VER-RF Cable Front/REAR Panel Jumper
Qty: 9 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-Front impact cover dark grey units use PN N9040-40007
Qty: 1 -
NO/VER-Rear impact cover dark grey units use pn N9040-40008
Qty: 1 -
SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
029, 080, 200, 219, 224
See Configuration Details
-
029
Fully-Corrected Noise-Figure Measurements To 26.5 Ghz
-
080
Frequency Offset Measurements
-
200
2 Ports, Single Source
-
219
Add Extended Power Range And Bias-Tees To 2 Port Analyzer
-
224
Add Internal Second Source, Combiner And Mechanical Switches To 2-Port Analyzer
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 3 -
LAB/VER-Adapter 3.5mm (F-M)
Qty: 1 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER cable guard
Qty: 2 -
LAB/VER-RF Cable Front/REAR Panel Jumper
Qty: 9 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-Front impact cover dark grey units use PN N9040-40007
Qty: 1 -
NO/VER-Rear impact cover dark grey units use pn N9040-40008
Qty: 1 -
SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
