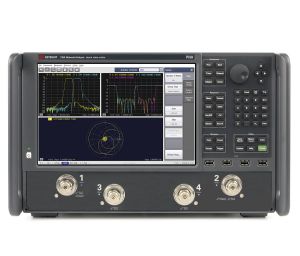

Keysight (Formerly Agilent) N5224B-400
4-port, 10 MHz - 43.5 GHz PNA Network Analyzer, 2.4 mm (m)
Rent or Lease
Specifications
| Maximum Frequency | 43.5 GHz |
|---|---|
| Dynamic Range | 127 dB |
| Output Power | 13 dBm |
| Trace Noise | 0.003 dBrms |
| Number of Built-In Ports | 2 or 4 ports |
| Harmonics | -60 dBc |
| Noise Floor | -114 dBm |
| Best Speed at 201 Point, 1 Sweep | 5.5 ms |
| Network Analyzer Series | PNA High Performance |
| Instrument Type | Vector Network Analyzer |
| Applications |
|
| Components |
|
| Benchtop | Yes |
- Configurations
- Resources
400
See Configuration Details
-
400
4-Port With Second Source
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 2 -
NO/VER-Wrench - Torque 8 in/lb, 20 mm open end
Qty: 1 -
NO/VER-Right angle power cord
Qty: 1 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-Front impact cover dark grey units use PN N9040-40007
Qty: 1 -
NO/VER-Rear impact cover dark grey units use pn N9040-40008
Qty: 1 -
SW-5969-5826 VNA and PNA Intuilink, E8356-10001 PNA Documentation 12/23/2015, 82357-90002 Manual 82357-90104 Getting Started. N5242-90019 OPT H85 USER AND SVC GUIDE E8356-90001 Installation and Quick Start Guide Edition 2 Aug 2017
Qty: 1 -
Front handle set (die cast), phantom gray (set of 2 handles)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
PNA N5224_5B Data Sheet
PNA B Family Microwave NA Config Guide
