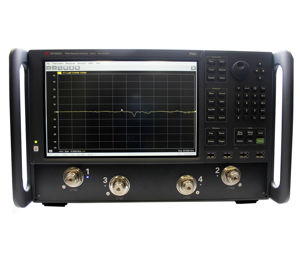

Keysight (Formerly Agilent) N5222B-400
4-port, 10 MHz - 26.5 GHz PNA Network Analyzer, 3.5 mm (m)
Rent or Lease
Specifications
Maximum Frequency
26.5 GHz
Dynamic Range
127 dB
Output Power
13 dBm
Trace Noise
0.002 dBrms
Number of Built-In Ports
2 or 4 ports
Harmonics
-21 dBc
Noise Floor
-114 dBm
Best Speed at 201 Point, 1 Sweep
6.3 ms
Network Analyzer Series
PNA High Performance
Instrument Type
Vector Network Analyzer
Applications
- S-Parameters
- Balance Measurements
- Materials
- Pulsed RF
Components
- Antennas
- Mixers/Frequency Converters
- Amplifiers
Benchtop
Yes
