Keysight (Formerly Agilent) N5172B-503
9 kHz - 3 GHz EXG Analog Signal Generator, Type N (f)
Rent or Lease

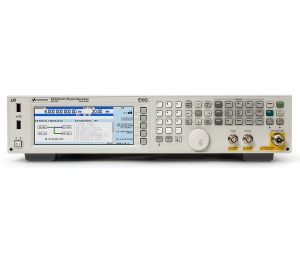

The Keysight N5172B-503 is a 3 GHz EXG vector signal generator. You can use the N5172B-503 to perform basic component parametric testing and functional verification of receivers. Here are the specifications of the Keysight, formerly Agilent N5172B-503.
Keysight N5172B-503 - Specifications:
Power @1 GHz
-144 dBm to 26 dBm
Phase Noise @1 GHz (20 kHz offset)
-122 dBc/Hz
Harmonics @1 GHz
<-35 dBc
IQ Modulation BW Internal/External
120 MHz to 200 MHz
Non-Harmonics @1 GHz
-72 dBc
Sweep Mode
- List
- Step
Baseband Generator Mode
Waveform Playback and Real-Time
Software-General Purpose
- AM, FM, PM
- Analog I/Q Input
- ASK
- FSK, MSK
- I/Q Waveform
- MATLAB
- Multitone, NPR
- Noise (AWGN)
- Phase Noise Impairment
- PSK
- Pulse
- Pulse Train Generator
- QAM
Software-Cellular/Wireless Connectivity
- 1xEV-DO
- 802.11 WLAN
- 802.16 WiMAX
- Bluetooth
- cdma2000
- cdmaOne
- EDGE Evolution
- GPRS/EGPRS
- GSM/EDGE
- HSPA, HSPA
- LTE
- NADC, PDC
- PHS, DECT
- TD-SCDMA
- TETRA, APCO
- W-CDMA
Software-Audio/Video Broadcasting
- ATSC, ATSC-M/H
- CMMB
- DAB, DAB , DMB-Audio
- DOCSIS DS
- DTMB
- DVB-C/S/S2
- DVB-T/H/T2
- FM Stereo, RDS/RBDS
- ISDB-T/TSB/TB/Tmm
- J.83 Annex A/B/C
- T-DMB
Software-Detection/Positioning/Tracking/Navigation
- Galileo
- GLONASS
- GNSS Waveforms
- GPS
Waveform Playback Memory: 512 Msa
Frequency Modulation-Maximum Deviation @1
