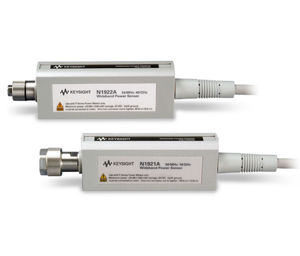

Keysight (Formerly Agilent) N1922A
50 MHz - 40 GHz P-Series WB Power Sensor (-35 to +20 dBm)
Rent or Lease
The Keysight N1922A is a P-Series wideband power sensor that offers a frequency range of 50 MHz to 40 GHz. The N1922A sensor provides internal zero and calibration, by integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.
Features of the Keysight, formerly Agilent N1922A:
- Zero and calibrate while connected to the DUT
- -35 dBm to 20 dBm wide dynamic range for peak power measurements
- Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
- Precision 2.4 mm connector as standard Sensor cable fixed to sensor. Available cable lengths are 1.5 m (5 ft.), 3 m (10 ft.) and 10 m (31 ft.)
The Keysight N1922A is available for rent or lease at TRS-RenTelco. Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 40 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us and request a quote today.
- Configurations
- Resources
Manual
Specs
