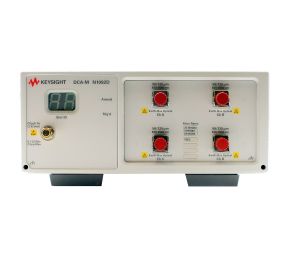

Keysight (Formerly Agilent) N1092D
Quad optical channel oscilloscope
Rent or Lease
Accurately perform optical and electrical waveform analysis for 20Gb per second through 53GBaud with the Keysight (formerly Agilent) N1092D quad optical channel oscilloscope.
The Keysight N1092D offers industry-leading low jitter and noise and fast sampling rates for high throughput for digital communication waveforms. Check optical transmitter compliance to communications standards with this world-class oscilloscope.
Featuring integrated instruments built in a small form factor, the N1092D is suitable for both manufacturing as well as R&D applications.
Keysight N1092D Features and Specifications:
- Number of channels: Four
- Bandwidth: > 40GHz (option 40A)
- Supported data rates: 20.6GBd to 28GBd (NRZ, PAM4) and 53GBd (TDECQ on PAM4)
- Nominal wavelength range: 830nm to 1,600nm
- Clock input range: 500MHz to 28.5GHz
- Sampling rate: 250kHz
- Noise: < 5 uW
- Jitter: < 200 fs
- Input type:
-Single-mode, FC/PC
-Single-mode and multimode, FC/PC
The Keysight (formerly Agilent) N1092D quad optical channel oscilloscope is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or get a quote call 800-874-7123.
- Configurations
- Resources
168, 200, 280, 300, 30A, 500, 9FP, ALL, COC, EFP....
See Configuration Details
-
168
25.78 Gb/S Tdec Filter
-
200
Enhanced Jitter Analysis Software, Fixed Perpetual License
-
280
25 To 29 Gbaud Filters
-
300
Advanced Amplitude Analysis/Rin/Q-Factor, Fixed Perpetual License
-
30A
30 Ghz Amplified
-
500
Productivity Package, Fixed Perpetual License
-
9FP
Pam-N Analysis Sw, Fixed Perpetual License
-
ALL
Internal Sw Option
-
COC
Certificate Of Calibration
-
EFP
Flex Eye - Independent Channel Acquisition And Control
-
FS1
Fast Sampling Rate
-
IRC
Impulse Response Correction To Provide Ideal Channel Response
-
LOJ
Low Jitter Timebase
-
PLK
Pattern Lock Trigger Hardware
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Right angle power cord
Qty: 1 -
USB CABLE 2M LONG 9 (L-COM)
Qty: 1 -
PROTECTIVE FRONT COVER FOR (N1092A Single optical channel oscilloscope)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
200, 201, 500, FS1, IRC, LOJ, N1092D, PLK
See Configuration Details
-
200
Enhanced Jitter Analysis Software, Fixed Perpetual License
-
201
Advanced Waveform Analysis Software, Fixed Perpetual License
-
500
Productivity Package, Fixed Perpetual License
-
FS1
Fast Sampling Rate
-
IRC
Impulse Response Correction To Provide Ideal Channel Response
-
LOJ
Low Jitter Timebase
-
N1092D
Quad Optical Channel Oscilloscope
-
PLK
Pattern Lock Trigger Hardware
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Right angle power cord
Qty: 1 -
USB CABLE 2M LONG 9 (L-COM)
Qty: 1 -
PROTECTIVE FRONT COVER FOR (N1092A Single optical channel oscilloscope)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Data sheet
