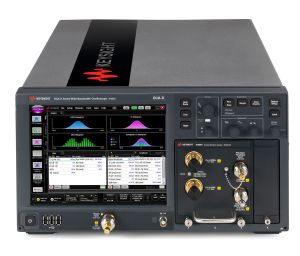

Keysight (Formerly Agilent) N1000A
DCA-X Wide-Bandwidth Oscilloscope Mainframe
Rent or Lease
The Keysight N1000A wide-bandwidth oscilloscope mainframe is built to perform accurate measurements on fast-pacing digital designs from 50 MBd to more than 80 GBd on up to 16 channels at the same time.
The computer system and storage specifications of the Keysight N1000A include:
- A CPU with Intel i5 quad core processor
- 8 GB RAM
- 64-bit operating system
- Windows 10
- Mass storage capacity of 240 GB internal SSD hard disk
The performance parameters of the Keysight N1000A are enhanced through frequent, simple user calibrations and are displayed on a 10.4-inch LCD module with a diagonal color active matrix.
The applications of Keysight N1000A include:
- Electrical ASIC/FPGA/IC design and characterization
- Optical transceiver design and production testing
- Characterize, perform measurements and troubleshoot serial buses through TDR/TDT and S-parameter measurements of channels, cables, and PCBs
Keysight N1000A - Features and Specifications:
- Bandwidth to > 110GHz, jitter as low as 50 fs, noise as low as 275 uV
- Can be customized with plug-in modules for optical, electrical and/or TDR/TDT/S-parameter analysis
- Sample rates up to 250 kSa/s and support up to 16 channels provides high test throughput
The Keysight N1000A comes with 365-day customer support and is available for rent or lease at TRS-RenTelco.
Request a quote today.
- Configurations
- Resources
GPI, PLK, STB
See Configuration Details
-
GPI
Gpib Card Interface
-
PLK
Pattern Lock Trigger Hardware
-
STB
Standard Timebase
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 1 -
NO/VER - USB OPTICAL WHEEL MOUSE
Qty: 1 -
NO/VER-Right angle power cord
Qty: 1 -
NO/VER-USB Mini Keyboard
Qty: 1 -
Adapter-Coaxial (F)2.92mm (F)2.92mm 50-Ohm 40GHz 18.1mm -Long
Qty: 1 -
Filler Panel Assembly (Carbon Black)
Qty: 2 -
NO/VER- Front cover for N1000A (carbon black)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
GPI, LOJ, PLK, PTB
See Configuration Details
-
GPI
Gpib Card Interface
-
LOJ
Low Jitter Timebase
-
PLK
Pattern Lock Trigger Hardware
-
PTB
Internal Precision Timebase (Requires Option Loj)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-SMA 50 OHM Terminator (Mouser (Amphenol) 523-132360 checked by David Y. OK)
Qty: 2 -
NO/VER - USB OPTICAL WHEEL MOUSE
Qty: 1 -
NO/VER-Right angle power cord
Qty: 1 -
NO/VER-USB Mini Keyboard
Qty: 1 -
Adapter-Coaxial (F)2.92mm (F)2.92mm 50-Ohm 40GHz 18.1mm -Long
Qty: 2 -
Filler Panel Assembly (Carbon Black)
Qty: 2 -
NO/VER- Front cover for N1000A (carbon black)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
