Keysight (Formerly Agilent) MSOX3104T

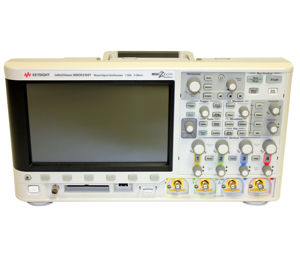

The MSOX3104T is part of the InfiniiVision 3000T X-Series oscilloscopes from Keysight. It gives you maximum protection on your investment with an industry-exclusive zone touch trigger and an update rate of 1 million waveforms per second to give you the confidence you need in signal detail and detection issues.

The MSOX3104T scope has a modulation feature that supports AM, FM, and FSK modulations with modulation shapes of sine, square, and ramp. With the AWG functionality, you can store waveforms from analog channels to arbitrary memory and output via WaveGen software.

Features and Specifications

• 8.5-inch capacitive touch screen for a large user interface
• InfiniiScan zone touch trigger
• Six-in-one instrument integration
• Analog, digital, and frequency domain correlation
• 1GHz bandwidth
• 4 Mpts memory
• 5 GSa per second (half-channels) and 2.5 GSa per second (all channels) sample rate
• Four analog channels
• 16 digital channels logic analyzer
• Two math functions
• Time/frequency domain correlation
• 38 automated measurements
• One USB 2.0 high-speed device port
• Two USB 2.0 high-speed host ports
• Waveform update rate: greater than 1,000,000 waveforms per second
• Input coupling: AC, DC
• Vertical resolution: 8 bits
• Mask testing rate: 270,000 tests per second

For all features, refer to the specification sheet.

To get up to 8GHz bandwidth, check out the Keysight MSOX804A. For 6GHz bandwidth and 16 GSa per second sample rate on all channels, try the MXR608A.

Applications

• Maintenance and repair
• Test and measurement
• System monitoring
• Optional limit testing, power rail probe, and video analysis

What Are the Benefits of MegaZoom IV Technology?

The MegaZoom IV technology in the MSOX3104T offers:

• 1M waveforms per second update rate, which is the industry's best and increases the rate of anomaly detection
• Zone touch trigger that makes triggering simple
• Standard segmented memory
• 100MHz bandwidth
