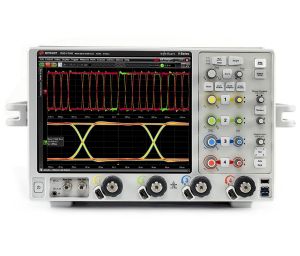

Keysight (Formerly Agilent) MSOV334A

Get faster, more reliable analysis and excellent measurement clarity with the Keysight (formerly Agilent) MSOV334A Infiniium V-Series mixed signal analyzer. Capture a longer signal trace with the signal analyzer's sampling rate of up to 80GSa per second.

Accurately and efficiently test low-speed serial or high-speed parallel buses with 2Gpts of acquisition memory. Make precise jitter measurements and perform RJ/DJ separation with the low intrinsic jitter floor of the Keysight MSOV334A.

Achieve accurate measurement results that you can trust with maximum eye-height measurements and guaranteed margins with extremely low noise floors. Seamlessly test and debug even the most sophisticated, complex designs with this world-class mixed signal analyzer.

Keysight MSOV334A Features and Specifications:

• Analog bandwidth: 33GHz (two channels) and 16GHz (four channels)
• Sampling rate: 80GSa per second (two channels) and 40GSa per second (four channels)
• Maximum memory: 2Gpts (four channels)
• Number of channels: 4 16
• ADC bits: 8 bits
• Minimum rise/fall time: 13.3ps (10 to 90 percent), 9.4 (20 80 percent)
• Edge trigger: > 20GHz
• Serial trigger: 12.5Gb per second, 160-bit sequence

The Keysight (formerly Agilent) MSOV334A Infiniium V-series mixed signal analyzer is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
