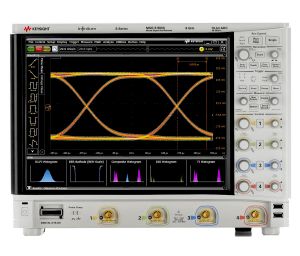

Keysight (Formerly Agilent) MSOS804A
4+16 channel 8 GHz, channel Mixed Signal Oscilloscope
Rent or Lease
The Keysight MSOS804A is an 8 GHz oscilloscope from the brand formerly known as Agilent, and is part of its famous Infiniium series of scopes.
Infiniium S-Series high-definition oscilloscopes incorporate new technology to deliver superior measurements. A 10-bit ADC, low-noise front end, correction filters, vertical scaling support down to 2 mV/division, and a precise time base produce high-fidelity measurements. In addition, its advanced frame and broad range of capability enable the S-Series oscilloscopes to tackle a wide range of test needs. MATLAB software is available directly from Keysight for making your own custom measurement and analysis routines, user-defined filters or instrument applications.
Here are some of the key specs of the Keysight MSOS804A:
- Bandwidth: 8 GHz
- Channels: 4 16
- Max Memory Depth: 800 Mpts (2 channels), 400 Mpts (4 channels)
- Max Sample Rate: 20 GSa/s (2 channels), 10 GSa/s (4 channels)
- Display Size: 15 inch
- ADC Bits: 10 bits
- Noise Floor: 1.4 mV at 50 mV/div
- Effective Number of Bits (ENOB): 6.4
- Typical Rise/Fall Time: 53.8 ps (10-90%), 33.8 ps (20-80%)
You can rent or lease the Keysight (formerly Agilent) MSOS804A from TRS-RenTelco with 365 days customer service. Request a quote today.
