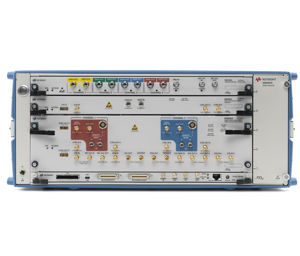

Keysight (Formerly Agilent) M8040A-32G
M8040A 32 GBaud High-Performance BERT
Rent or Lease
The Keysight (formerly Agilent) M8040A-32G is a highly integrated BERT (Bit Error Rate Tester) for physical layer characterization and compliance testing. With support for PAM-4 and NRZ signals and data rates up to 64 GBaud (corresponds to 128 Gbit/s) it covers all flavors of 200 and 400 GbE standards.
The M8040A BERT offers true error analysis and provides repeatable and accurate results optimizing the performance margins of your 400GbE devices. The M8040A can be used for receiver (input) testing for many popular interconnect standards that use PAM-4 and NRZ data formats, such as: 400 GbE, 50/100/200 GbE, OIF CEI-56G and CEI-112G, 64G/112G Fibre Channel, Infiniband-HDR and proprietary interfaces for chip-to-chip, chip-to-module, backplanes, repeaters and active optical cables. Freely defined test points, e.g. jitter frequencies, without the need for pre-calculating pattern. Integrated sources for periodic jitter, random jitter and bounded uncorrelated jitter stress generation.
The Keysight (formerly Agilent) M8040A-32G is available for rent and for lease at TRS-RenTelco. Request a quote today for calibrated test equipment with 24/7 customer support.
- Configurations
- Resources
M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0P3, M8045A-801, M8045A-G32, M8046A-0P3, M8046A-A32, M8057A-FG, M8070A-1TP
See Configuration Details
-
M8040A-BU1
Bundle Consisting Of One M9505a 5-Slot Axie Chassis And One M9536a Axie Embedded Pc Controller With 16gb Ram Option
-
M8045A-0G3
Advanced Jitter Sources For Receiver Characterization, Module-Wide License
-
M8045A-0G4
De-Emphasis, Module-Wide License
-
M8045A-0P3
Pam-4 Encoding Up To 32 Gbaud, Module-Wide License
-
M8045A-801
Short Cable 1.85 Mm (M) To 1.85 Mm (M), 0.15 M, Absolute Matching 699 Ps +- 1 Ps
-
M8045A-G32
Pattern Generator One Channel Nrz, Data Rate Up To 32 Gbaud (Requires Remote Head, E.G. M8057a)
-
M8046A-0P3
Pam-4 Decoding Up To 32 Gbaud
-
M8046A-A32
Analyzer, One Channel, Data Rate Up To 32 Gbaud, Nrz
-
M8057A-FG
Remote Head For M8045a Pattern Generator, 1 Channel
-
M8070A-1TP
Dut Control Interface, Transportable, Perpetual License
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER - Anti-Static ESD Mat with ground cord
Qty: 1 -
LAB/VER-2.4 mm 50 ohm load. Male connector.
Qty: 1 -
LAB/VER - 50 ohm SMA terminator
Qty: 4 -
NO/VER-USB A (M) to Mini B (M) cable, 5' or 1.5M
Qty: 1 -
AXIe Chassis: 5-Slot with Integrated System Module (This is the asset)
Qty: 1 -
NO/VER Heavy Duty Power Cord (square connector) - sub available on e-BAY per lab @ $11.05/ea.
Qty: 1 -
SW-Keysight M9536A Product Information CD
Qty: 1 -
AXIe Embedded Controller: Quad Core, 8G RAM, 160SSD, 2GB/s
Qty: 1 -
Heel Ground Strap
Qty: 1 -
LAB/VER-Rosenburger Cable Discharger and cable
Qty: 1 -
LAB/VER-Microwave-Filter Bandpass 11.1-17.5 GHz 18.8mm-Wide 10.2mm-HT (see Marki Microwave, PN FB-1450)
Qty: 1 -
LAB/VER-EXTERNAL CLOCK CABLE
Qty: 1 -
LAB/VER-Connector-Coaxial Termination Plug-RPC-3.50 50-ohm 26.5GHz-MAX Use PN 015-1022-01 as alternate if only need for up to 18GHz (only rated to 18GHz)
Qty: 4 -
SW-Manuals and Software
Qty: 1 -
Hard Transit Case for Keysight M8000A J-BERT units
Qty: 1 -
NO/VER-Filler Panel (DARK COLOR)
Qty: 0 -
Remote Head for M8045A Pattern Generator, 1 Channel
Qty: 1 -
External DUT Cable (M8040AU Option)
Qty: 2 -
32 GBaud High-Performance BERT Pattern Generator-Clock Module This is the asset
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1 -
32 GBaud High-Performance BERT ANALYZER OPT:A32 32G NRZ
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
M8040A-BU1, M8045A-0G2, M8045A-0G3, M8045A-0G4, M8045A-0G9, M8045A-0P3, M8045A-801, M8045A-G32, M8057A-FG
See Configuration Details
-
M8040A-BU1
Bundle Consisting Of One M9505a 5-Slot Axie Chassis And One M9537a Axie Embedded Pc Controller With 16gb Ram Option
-
M8045A-0G2
Second Channel, Hardware And License (Requires Remote Head, E.G. M8057a)
-
M8045A-0G3
Advanced Jitter Sources For Receiver Characterization, Module-Wide License
-
M8045A-0G4
De-Emphasis, Module-Wide License
-
M8045A-0G9
Forward Error Correction (Fec) Encoding, Module-Wide License
-
M8045A-0P3
Pam-4 Encoding Up To 32 Gbaud, Module-Wide License
-
M8045A-801
Short Cable 1.85 Mm (M) To 1.85 Mm (M), 0.15 M, Absolute Matching 699 Ps +- 1 Ps
-
M8045A-G32
Pattern Generator One Channel Nrz, Data Rate Up To 32 Gbaud (Requires Remote Head, E.G. M8057a)
-
M8057A-FG
Remote Head For M8045a Pattern Generator, 1 Channel
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER - Anti-Static ESD Mat with ground cord
Qty: 1 -
LAB/VER-2.4 mm 50 ohm load. Male connector.
Qty: 1 -
NO/VER-USB A (M) to Mini B (M) cable, 5' or 1.5M
Qty: 1 -
AXIe Chassis: 5-Slot with Integrated System Module (This is the asset)
Qty: 1 -
NO/VER Heavy Duty Power Cord (square connector) - sub available on e-BAY per lab @ $11.05/ea.
Qty: 1 -
Heel Ground Strap
Qty: 1 -
LAB/VER-Rosenburger Cable Discharger and cable
Qty: 1 -
LAB/VER-Connector-Coaxial Termination Plug-RPC-3.50 50-ohm 26.5GHz-MAX Use PN 015-1022-01 as alternate if only need for up to 18GHz (only rated to 18GHz)
Qty: 4 -
Hard Transit Case for Keysight M8000A J-BERT units
Qty: 1 -
NO/VER-Filler Panel (DARK COLOR)
Qty: 0 -
Remote Head for M8045A Pattern Generator, 1 Channel
Qty: 1 -
External DUT Cable (M8040AU Option)
Qty: 2 -
32 GBaud High-Performance BERT Pattern Generator-Clock Module This is the asset
Qty: 1 -
SW-Manuals and Software
Qty: 1 -
AXIe High Performance Embedded Controller
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
M8040A-BU1, M8045A-0G3, M8045A-0G4, M8045A-0P3, M8045A-801, M8045A-G32, M8057A-FG
See Configuration Details
-
M8040A-BU1
Bundle Consisting Of One M9505a 5-Slot Axie Chassis And One M9537a Axie Embedded Pc Controller With 16gb Ram Option
-
M8045A-0G3
Advanced Jitter Sources For Receiver Characterization, Module-Wide License
-
M8045A-0G4
De-Emphasis, Module-Wide License
-
M8045A-0P3
Pam-4 Encoding Up To 32 Gbaud, Module-Wide License
-
M8045A-801
2 Ea - Short Cable 1.85 Mm (M) To 1.85 Mm (M), 0.15 M, Absolute Matching 699 Ps +- 1 Ps
-
M8045A-G32
Pattern Generator One Channel Nrz, Data Rate Up To 32 Gbaud (Requires Remote Head, E.G. M8057a)
-
M8057A-FG
Remote Head For M8045a Pattern Generator, 1 Channel
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER - Anti-Static ESD Mat with ground cord
Qty: 1 -
LAB/VER-2.4 mm 50 ohm load. Male connector.
Qty: 1 -
NO/VER-USB A (M) to Mini B (M) cable, 5' or 1.5M
Qty: 1 -
AXIe Chassis: 5-Slot with Integrated System Module (This is the asset)
Qty: 1 -
NO/VER Heavy Duty Power Cord (square connector) - sub available on e-BAY per lab @ $11.05/ea.
Qty: 1 -
Heel Ground Strap
Qty: 1 -
LAB/VER-Rosenburger Cable Discharger and cable
Qty: 1 -
LAB/VER-Connector-Coaxial Termination Plug-RPC-3.50 50-ohm 26.5GHz-MAX Use PN 015-1022-01 as alternate if only need for up to 18GHz (only rated to 18GHz)
Qty: 4 -
Hard Transit Case for Keysight M8000A J-BERT units
Qty: 1 -
NO/VER-Filler Panel (DARK COLOR)
Qty: 0 -
Remote Head for M8045A Pattern Generator, 1 Channel
Qty: 1 -
External DUT Cable (M8040AU Option)
Qty: 2 -
32 GBaud High-Performance BERT Pattern Generator-Clock Module This is the asset
Qty: 1 -
SW-Manuals and Software
Qty: 1 -
AXIe High Performance Embedded Controller
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
