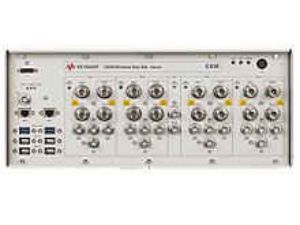

Keysight (Formerly Agilent) E6640A
EXM Wireless Test Set
Rent or Lease
Key Features & Specifications
Optimize multi-device testing
* Up to four TRX channels per EXM, with up to 6 GHz bandwidth on each TRX
* Two full-duplex and two half-duplex or four full-duplex ports per TRX
* Customizable to connect up to 32 DUTs with multi-port adapter (MPA) technology
* Independent source and analyzer on each TRX allows efficient use of test resources
Test multi-format devices
* Cellular: LTE/LTE-Advanced FDD, LTE/LTE-Advanced TDD, HSPA , W-CDMA, 1xEV-DO, cdma2000, GSM/EDGE-Evo, TD-SCDMA, DECT and PHS
* Connectivity: 802.11a/b/g/n/j/p/ac/af/ah, WLAN MIMO 2x2/3x3/4x4, Bluetooth, WiMAX, multi-satellite GNSS, FM, Zigbee and digital video
Maximize throughput and yield
* Accelerate test execution by capturing multiple format cellular and WLAN measurements via advanced sequencing and single-acquisition multiple measurements (SAMM)
* Receiver EVM for 160 MHz 802.11ac: less than or equal to -43 dB (typical)
* Absolute level accuracy, 380 MHz to 3.8 GHz: less than or equal to plus or minus 0.2 dB (typical)
* Output power range, 380 MHz to 6 GHz: 5 to -130 dBm (typical)
Get up and running in hours, not days, with validated turnkey chipset solutions
* Reduce test-development time and cost with chipset-specific calibration and verification routines
* Leverage local application engineers' expertise to optimize the EXM for your needs
- Configurations
- Resources
4FD, KYB, M44, MSE, TRX1-001, TRX1-506, TRX1-B1X, TRX2-002, TRX2-506, TRX2-B1X....
See Configuration Details
-
4FD
Selects Trx Configuration For 4fd
-
KYB
Keyboard, Usb
-
M44
Up To 4x4 True Mimo, Fixed Perpetual License
-
MSE
Mouse, Usb
-
TRX1-001
Trx1 Transceiver Hardware
-
TRX1-506
Frequency Range, 380 Mhz To 6 Ghz
-
TRX1-B1X
160 Mhz Bandwidth
-
TRX2-002
Trx2 Transceiver Hardware
-
TRX2-506
Frequency Range, 380 Mhz To 6 Ghz
-
TRX2-B1X
160 Mhz Bandwidth
-
TRX3-003
Trx3 Transceiver Hardware
-
TRX3-506
Frequency Range, 380 Mhz To 6 Ghz
-
TRX3-B1X
160 Mhz Bandwidth
-
TRX4-004
Trx4 Transceiver Hardware
-
V9065B-SFP
Switched Mimo Capability, Fixed Perpetual License
-
V9077B-KFP
Wlan Combined Stream Mimo Measurements, Fixed Perpetual License
-
Y9071B-2FP
Gsm/Edge Measurement And Waveform Application, Fixed Perpetual License
-
Y9072B-2FP
Cdma2000 Measurement And Waveform Application, Fixed Perpetual License
-
Y9073B-1FP
W-Cdma Measurement And Waveform Application, Fixed Perpetual License
-
Y9073B-2FP
Hsdpa/Hsupa Measurement And Waveform Application, Fixed Perpetual License
-
Y9073B-3FP
Hspa+ Measurement And Waveform Application, Fixed Perpetual License
-
Y9076B-1FP
1xev-Do Measurement And Waveform Application, Fixed Perpetual License
-
Y9077B-2FP
Wlan 802.11 A/B/G/P Measurement And Waveform Application, Fixed Perpetual License
-
Y9077B-3FP
Wlan 802.11 N Measurement And Waveform Application, Fixed Perpetual License
-
Y9077B-4FP
Wlan 802.11 Ac Measurement And Waveform Application, Fixed Perpetual License
-
Y9077B-WFP
Wlan 802.11 Ac Wave 2 Measurement And Waveform Application, Fixed Perpetual License
-
Y9079B-1FP
Td-Scdma Measurement And Waveform Application, Fixed Perpetual License
-
Y9079B-2FP
Td-Hspa Measurement And Waveform Application, Fixed Perpetual License, Requires 1fp Or 1tp
-
Y9080B-1FP
Lte Fdd Measurement And Waveform Application, Fixed Perpetual License
-
Y9080B-2FP
Lte-Advanced Fdd Measurement And Waveform Application, Fixed Perpetual License
-
Y9081B-2FP
Bluetooth Measurement And Waveform Application, Fixed Perpetual License
-
Y9082B-1FP
Lte Tdd Measurement And Waveform Application, Fixed Perpetual License
-
Y9082B-2FP
Lte-Advanced Tdd Measurement And Waveform Application, Fixed Perpetual License
