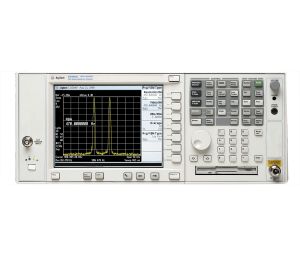

Keysight (Formerly Agilent) E4440A
26.5 GHz Spectrum Analyzer, Type N (f)
Rent or Lease • Buy Used From $18,700
The E4440A PSA spectrum analyzer measures and monitors complex microwave and RF signals ranging between 3Hz and 26.5GHz. The Keysight external mixer and third-party mixers can expand the frequency coverage to 110GHz and 325GHz, respectively.
This high-performance PSA spectrum analyzer has a wide set of features, such as powerful one-button measurements and an outstanding combination of flexibility, speed, accuracy, dynamic range, and analysis bandwidth.
Keysight E4440A Features and Specifications
- Standard Power Suite one-button power measurements
- Highly flexibile, with 16 optional easy-to-use, built-in measurement personalities
- Analysis bandwidth for calibrated VSA measurements: Up to 300MHz
- Capture and measure complex signals with ten standard 40MHz to 80 MHz analysis bandwidth capabilities
- 81 dB W-CDMA ACLR dynamic range
- Standard attenuator range/step: 70 dB/2 dB
- DANL at 1GHz: -169 dBm
- Maximum analysis bandwidth: 80MHz
- -147 dBc/Hz phase noise at 1GHz (1MHz offset)
- -118 dBc/Hz phase noise at 1GHz (10kHz offset)
- Third order intercept (TOI) at 1GHz: 19 dBm
- /- 0.19 dB absolute amplitude accuracy
- Maximum dynamic range third order at 1GHz: 116 dB
- Dynamic range (-154 dBm DANL, 17 dBm TOI)
- Accuracy: 0.38 dB frequency response, 0.62 dB amplitude accuracy, 0.07 dB log amplification linearity
- All-digital IF with auto-ranging capability
- Full detector suite
- 160 resolution bandwidth settings (10 percent steps)
- FFT and swept measurement modes
- EMI compatibility: CISPR Pub 11/1996 Class B
- 0 degrees C to 55 degrees C operating temperature range
- -40 degrees C to 70 degrees C storage temperature range
Keysight E4440A Applications
These Agilent spectrum analyzers find use in research and development (R&D) and manufacturing in cellular and emerging wireless communications and in aerospace and defense.
The E4440A PSA is ideal for applications involving measurements of spur searches, EMI compliance with CISPR-compliant bandwidths and detectors, stimulus response, pulse, MATLAB, millimeter-wave and phase noise level, noise figure, and flexible digital modulation analysis.
How to Save Files to a Floppy Disk on the Keysight E4440A
Of course, you can use USB, DVD-ROMs, smart card readers, and a GPIB interface to transfer information effortlessly to a PC. But if you absolutely must use a floppy disk, the Keysight (Formerly Agilent) PSA series supports the 3.5-inch 1.44MB floppy disk drive. You need to use the front panel of the device and interact with the DOS-based GUI to save the file into a floppy disk.
Rent, lease, or buy Keysight E4440A spectrum analyzers online at TRS-RenTelco, an ISO 9001:2015-certified dealer in electronic and electrical test equipment. We calibrate all T&M equipment in our ISO/IEC 17025:2017-certified laboratory.
Get products with next-day delivery options and 24/7 customer support across the US. Call us at 800.874.7123.
- Configurations
- Resources
1DS
See Configuration Details
-
1DS
Preamplifier 500k To 3 Ghz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1DS, 226
See Configuration Details
-
1DS
Preamplifier 500k To 3 Ghz
-
226
Phase Noise Measurement
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1DS, 202, 219, 226, 241, B7J, BAF
See Configuration Details
-
1DS
Preamplifier 500k To 3 Ghz
-
202
Gsm With Edge Measurement Pers
-
219
Noise Figure Personality
-
226
Phase Noise Measurement
-
241
Flexible Digital Modulation Analysis
-
B7J
Digital Demodulation Hardware
-
BAF
W-cdma Measurement Personality
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-2.4mm(F) to 2.4mm(F) adapter Fairview SM3010 suitable sub. is suitable sub SVMicrowave SF1116-6037 (33311-82005) Pasternack PE9543
Qty: 1 -
NO/VER-Power Cord.
Qty: 1 -
NO/VER- Front cover
Qty: 1 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
LAB/VER-2.92 mm (f) to 2.4 mm (f) 50-OHM 40GHZ
Qty: 1 -
SW- N9020-90250
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
117, 122, 123, 124, 1DS, 202, 204, 210, 211, 212....
See Configuration Details
-
117
Secure Memory Erase
-
122
80 Mhz Bandwidth Digitizer
-
123
Switchable Mw Preselector Bypass
-
124
Y-Axis Video Output
-
1DS
Preamplifier 500k To 3 Ghz
-
202
Gsm With Edge Measurement Pers
-
204
1xev-do Measurement Personality
-
210
Hsdpa/Hsupa Measurement Personality, Fixed Perpetual License
-
211
Td-Scdma Power Measurement Personality
-
212
Td-Scdma Modulation Analysis Measurement Personality, Fixed Perpetual License
-
213
Hspa/8psk For Td-Scdma Modulation Analysis Measurement Personality, Fixed Perpetual License
-
214
1xev-Dv Measurement Personality, Fixed Perpetual License
-
215
External Source Control Measurement Personality, Fixed Perpetual License
-
217
Wlan 802.11a/B/G Measurement Personality, Fixed Perpetual License
-
219
Noise Figure Personality
-
226
Phase Noise Measurement
-
233
Measuring Receiver Measurement Personality, Fixed Perpetual License
-
235
Wide Bw Digitizer External Cal Wizard
-
241
Flexible Digital Modulation Analysis
-
266
8566b Code Compatible
-
B78
Cdma2000 Measurement Personality
-
B7J
Digital Demodulation Hardware
-
BAC
Cdmaone Meas Personality Retrofit
-
BAF
W-cdma Measurement Personality
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1DS, 202, 210, 219, 226, 241, 266, B78, B7J, BAC....
See Configuration Details
-
1DS
Preamplifier 500k To 3 Ghz
-
202
Gsm With Edge Measurement Pers
-
210
Hsdpa/Hsupa Measurement Personality, Fixed Perpetual License
-
219
Noise Figure Personality
-
226
Phase Noise Measurement
-
241
Flexible Digital Modulation Analysis
-
266
8566b Code Compatible
-
B78
Cdma2000 Measurement Personality
-
B7J
Digital Demodulation Hardware
-
BAC
Cdmaone Meas Personality Retrofit
-
BAF
W-cdma Measurement Personality
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
1DS, 210, 241, B7J, BAF
See Configuration Details
-
1DS
Preamplifier 500k To 3 Ghz
-
210
Hsdpa/Hsupa Measurement Personality, Fixed Perpetual License
-
241
Flexible Digital Modulation Analysis
-
B7J
Digital Demodulation Hardware
-
BAF
W-cdma Measurement Personality
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
241
See Configuration Details
-
241
Flexible Digital Modulation Analysis
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
122, 123, 1DS, 217, 226, B7J
See Configuration Details
-
122
80 Mhz Bandwidth Digitizer
-
123
Switchable Mw Preselector Bypass
-
1DS
Preamplifier 500k To 3 Ghz
-
217
Wlan Measurement Personality
-
226
Phase Noise Measurement
-
B7J
Digital Demodulation Hardware
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
117, 1DS, 219, 226, 241, B7J, BAC
See Configuration Details
-
117
Secure Memory Erase
-
1DS
Preamplifier 500k To 3 Ghz
-
219
Noise Figure Personality
-
226
Phase Noise Measurement
-
241
Flexible Digital Modulation Analysis
-
B7J
Digital Demodulation Hardware
-
BAC
Cdmaone Meas Personality Retrofit
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
---, 111, 115, 1DS, 226
See Configuration Details
-
---
Base Model
-
111
Usb Device Side I/O Interface
-
115
512 Mb User Memory
-
1DS
Preamplifier 500k To 3 Ghz
-
226
Phase Noise Measurement
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
111, 117, 122, 123, 124, 1DS, 217, 219, 226, 241....
See Configuration Details
-
111
Usb Device Side I/O Interface
-
117
Secure Memory Erase
-
122
80 Mhz Bandwidth Digitizer
-
123
Switchable Mw Preselector Bypass
-
124
Y-Axis Video Output
-
1DS
Preamplifier 500k To 3 Ghz
-
217
Wlan Measurement Personality
-
219
Noise Figure Personality
-
226
Phase Noise Measurement
-
241
Flexible Digital Modulation Analysis
-
B7J
Digital Demodulation Hardware
-
BAF
W-cdma Measurement Personality
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Crossover Cable, 6ft. RJ45-RJ-45 crossover (CDW PN 160854)
Qty: 1 -
LAB/VER-USB A to B cable
Qty: 0 -
SW- E4440-90205 REV DEC 2012, E4401-90496 VER 2.4.0.42
Qty: 1 -
SW-IO Libraries Suite (v18.2.27115)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Show More
