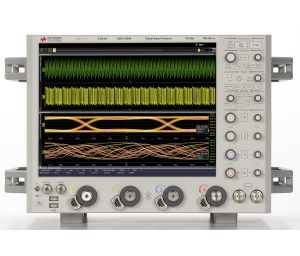

Keysight (Formerly Agilent) DSAZ334A
4 Ch 33 GHz 4Ch GHz Oscope
Rent or Lease
With the emergence of technologies pushing hundreds of Gb/s and 50 Gbps, an oscilloscope must now have high bandwidth, low noise and fast processing. That is the idea behind the Z-Series. It features up to 63 GHz of real-time oscilloscope bandwidth and the industry's lowest noise and jitter measurement floors. Equip your lab with the Z-Series and achieve new extremes.
The Keysight DSAZ334A is part of this Z-series of oscilloscopes. Here's a quick look at the specifications for this device.
DSAZ334A specifications:
- Bandwidth: 33 GHz
- Bandwidth Upgrades: Available
- Channels: 4
- Max Memory Depth: 2 Gpts (max), 100 Mpts (standard)
- Max Sample Rate: 80 GSa/s
- Display Size: 15.4 inch
- Waveform Update Rate: 1,000 wfms/s
- ADC Bits: 8 Bits
- Noise Floor: 2.00 mVrms at 50 mV/div
- Minimum Rise/Fall Time: 13 ps (10-90%), 10.6 ps (20-80%)
- Special Triggers: InfiniiScan Trigger, A-B HW Trigger
You can rent or lease the Keysight, formerly Agilent, DSAZ334A Z-series oscilloscope from TRS-RenTelco. Request a quote for calibrated test equipment with 24/7 customer support today.
- Configurations
- Resources
DSA
See Configuration Details
-
DSA
100 Mpts Memory, Ezjit, Ezjit Plus, Ezjit Complete And Serial Data Analysis Software
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Wrist strap kit. (10 or more $16/ea)
Qty: 1 -
NO/VER - USB OPTICAL WHEEL MOUSE
Qty: 1 -
LAB/VER- APC 3.5(f) to APC 3.5(f) adapter
Qty: 5 -
NO/VER-USB Mini Keyboard
Qty: 1 -
NO/VER-Connector saver collars. Issued as each
Qty: 1 -
LAB/VER-Calibration Cable.
Qty: 1 -
NO/VER Heavy Duty Power Cord (square connector) - sub available on e-BAY per lab @ $11.05/ea.
Qty: 1 -
Front Cover
Qty: 1 -
NO/VER - Replacement transit case for DSAXQ90000 Series
Qty: 1
