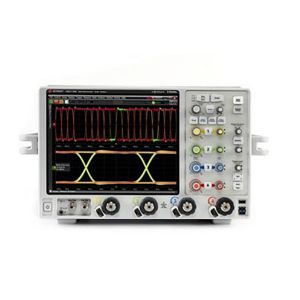

Keysight (Formerly Agilent) DSAV164A

Achieve faster clarity, reliable analysis, and superior measurements with the Keysight (formerly Agilent) DSAV164A Infiniium V-Series oscilloscope.

Capture a longer signal trace with the oscilloscope's sampling rate of up to 80GSa per second for two channels and 40Gsa per second for foru channels. Accurately test multiple high-speed serial lanes or a massive parallel bus with 2Gpts of acquisition memory.

Make more accurate jitter measurements and RJ/DJ separation with the DSAV164A's low intrinsic jitter. Maximize eye height measurements and guarantee margins with extremely low noise floors.

Keysight DSAV164A Features and Specifications:

• Analog bandwidth: 16GHz
• Number of channels: Four
• Max sample rate: 80GSa per second (two channels), 40GSa per second (four channels)
• Memory depth: 100Mpts/channel standard
• Max memory depth: 2Gpts
• ADC bits: 8 bits
• Minimum rise/fall time: 27.5 ps (10 to 90 percent), 19.4 (20 to 80 percent)
• Edge trigger: > 20GHz
• Low noise (1.32 mVrms at 50 mV/div) and jitter measurement floor (100 fs)

The Keysight (formerly Agilent) DSAV164A Infiniium V-Series oscilloscope is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
