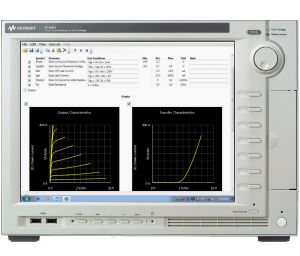

Keysight (Formerly Agilent) B1506A
Power Device Analyzer (Curve Tracer) for Circuit Design
Rent or Lease
The Keysight (formerly Agilent) B1506A Power Device Analyzer for Circuit Design is a complete solution that can help power electronic circuit designers maximize the value of their power electronics products by enabling them to select the correct power devices for their applications. It can evaluate all relevant device parameters under a wide range of operating conditions, including IV parameters such as breakdown voltage and on-resistance, as well as three terminal FET capacitances, gate charge and power loss.
The Keysight B1506A has a wide range of capabilities that help it identify substandard devices under actual circuit operating conditions, including a wide voltage and current range (3 kV and 1500 A), a wide temperature measurement range (-50 deg C to 250 deg C), fast pulsing capability, and Sub-nA level current measurement resolution. Its unique software interface presents the user with a familiar device data sheet format that makes it easy to characterize devices without going through any formal training. Integrated switching circuitry within the test fixture supports fully automated testing, with the ability to automatically change between both high voltage and high current testing as well as between IV and CV measurements.
In addition, a unique plug-in style device test fixture socket adapter eliminates cable connection and other human-related errors. The B1506A also supports the complete automation of thermal characterization. This can be accomplished either through the integrated Thermostream control or via the Thermal Plate. Since the DUT is in close proximity to the B1506A's measurement resources, the large parasitics caused by cable extensions leading to a temperature chamber do not exist.
Get the Keysight (formerly Agilent) B1506A curve tracer for rent or for le
- Configurations
- Resources
H71
See Configuration Details
-
H71
Opt H71 - 1500 A/3 Kv/C-V/Gate Charge/Thermal Fixture Package
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 2 -
NO/VER- Stylus-
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
NO/VER-OEM Mini Keyboard 319X157X20-mm.
Qty: 1 -
LAB/VER-Multi Freq Cap. Meas. Module
Qty: 1 -
GNDU Board. (Not Orderable)
Qty: 1 -
Univeral Stage. 13.5" x 7" rubber base with plexi-glass and 4 pins
Qty: 1 -
SHORT BAR FOR INLINE TO SOCKET
Qty: 3 -
D-SUB CABLE ASSEMBLY 1.5M
Qty: 1 -
CMU CABLE 1.5M TEST LEAD
Qty: 1 -
LAB/VER-High Voltage SMU module
Qty: 1 -
LAB/VER-Medium Current Source Monitor Unit .
Qty: 4 -
LAB/VER-MEDIUM POWER MODULE SMU
Qty: 1 -
Power Device Analyzer for Circuit Design 1500A Fixture
Qty: 1 -
SW-Product Reference CD REV A.01.10 B15506A Power Device Analyzer for Circuit Design
Qty: 1 -
THERMOCOUPLE CABLE ASSEMBLY,HIGH TEMPERATURE RESISTANCE.
Qty: 1 -
SMU Channel Label Sheet
Qty: 1 -
NO/VER-LABEL
Qty: 1 -
TERMINAL-CRIMP RING-TONGUE STUD SIZE-8 12-10 AWG UNINSULATED
Qty: 6 -
TERMINAL-CRIMP RING-TONGUE STUD SIZE-4 16-14-AWG UNINSULATED
Qty: 20 -
TO-220 SOCKET ADAPTER, POWER DEVICE ANALYZER FOR CIRCUIT DESIGN
Qty: 1 -
LAB/VER-GATE CHARGE MEASUREMENT ADAPTER,POWER DEVICE ANALYZER FOR CIRCUIT DESIGN
Qty: 1 -
UNIVERSAL ADAPTER
Qty: 1 -
CURVE TRACER TEST ADAPTER Socket Module
Qty: 1 -
TEST LEAD 2M FOR THERMAL TEST
Qty: 1 -
1500 A TEST LEAD 2M FOR THERMAL TEST
Qty: 1 -
CABLE ASSEMBLY 200MM,HIGH CURRENT TEMPERATURE RESISTANCE
Qty: 1 -
CABLE ASSEMBLY 300MM, HIGHT CURRENT TEMPERATURE RESISTANCE.
Qty: 1 -
SW-Product Reference CD REV 2.0 B1506A Power Device Analyzer for Circuit Design
Qty: 0 -
CURVE TRACER TEST ADAPTER Socket Module. Not orderable. Contact Keysight repair.
Qty: 0 -
Composite Cable set Assembly with trunk cover, contains 13 cables
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
