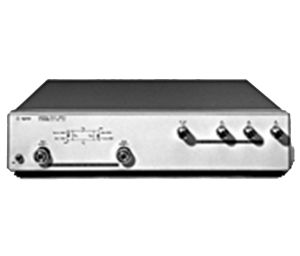

Keysight (Formerly Agilent) 87511A
100 kHz - 500 MHz S-Parameter Test Set
On Order: 0
Warranty: 12 Months
Buy New
S-Parameter Test Set for 8751, 50 Ohm, 7 mm. Frequency Range: 100 kHz to 500 MHz. Directivity Port 1 & 2: >30dB, 100 kHz to 300 kHz; >40dB 300 kHz to 200 MHz; >35dB 200 MHz to 500 MHz. Port match: R,A,B,RF IN: >20dB. Switch Repeatability: /- 0.03dB. Source Match: >15dB, 100 kHz to 300 kHz; >20dB, 300 kHz to 500 MHz. Frequency Response: /- 1 dB. Insertion Loss: RF IN to Port 1 & 2: 13 dB; RF IN to R,A,B: 19 dB Isolation Loss between port 1 & 2: 110 dB. Impedance Port 1 & 2: 50 Ohm, RF IN,R,A,B: 50 Ohm Connectors: Port 1 & 2: 50 Ohm type-N(f) Connectors: RF IN,R,A,B: 50 Ohm type-N(f) Max. Input Level: 20 dBm.
Read More
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER- Sig pro interconnect cable (Obsolete)
Qty: 1 -
LAB/VER-Cable assembly (See 8120-2289)
Qty: 4 -
OPS MANUAL
Qty: 1
