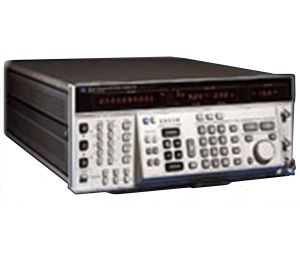

Keysight (Formerly Agilent) 8663A
2.5 GHz Synthesized Signal Generator, Type N (f)
On Order: 0
Warranty: 12 Months
Buy New
The spectral purity of the 8663A signal generator makes it ideal for many radar, satellite communication, and phase noise measurement applications. Typical absolute phase noise performance of this generator at a 1 kHz offset is as low as -135 dBc/Hz, depending on the band of operation. The frequency range of the 8663A is 100 kHz to 2560 MHz. It offers versatile AM, FM, phase (option 002), and pulse modulation using either internal or externally applied modulating signals. A programmable 10 Hz to 99.9 kHz modulation synthesizer provides internal rate generation for all four modulation types and can be swept in either a log or linear fashion. The signal generator also has simultaneous modulation capability. Frequency resolution: 0.1 Hz. Level accuracy: /-1 dBm. Output level: 16 to -139.9 dBm.
Read More
- Configurations
- Resources
001
See Configuration Details
-
001
RF Connector On Rear Panel Only
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
SW-Manual on CD. Includes part number 08663-90069
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
001, 002, H03, H12
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
Manual
