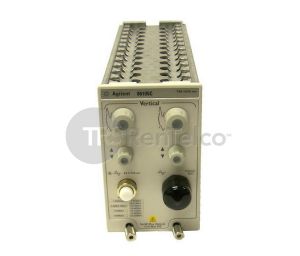

Keysight (Formerly Agilent) 86105C
9 GHz optical/20 GHz elec. samp. mod. 750-1650nm-SMF and MMF
Rent or Lease
Test the widest range of telecom and datacom wavelengths and transmission rates with the Keysight (Formerly Agilent) 86105C 9 GHz Optical / 20 GHz Oscilloscope. The 86105C helps perform waveform characterization and test transmitter compliance on multiple networking technologies using a single plug-in module.
Keysight 86105C - Features and Specifications:
- 9 GHz amplified optical channel for 9/125 to 62.5/125 fibers
- Wavelength range of 750-1650 nm
- Characteristic RMS noise of 0.8 microwatt (1310/1550 nm, 2.667 Gb/s), 1.4 microwatt (1310/1550 nm, 11.3 Gb/s), 1.3 micorwatt (850 nm, 2.667 Gb/s), 2.5 microwatt (1310/1550 nm, 11.3 Gb/s)
- Maximum average input power of 0.5 mW
- Bandwidth of 9 GHz - optical, and 20 GHz - electrical
- Typical sensitivity ranging from -21 to -16 dBm based on rate and wavelength
- Fiber input of 62.5 mm (accepts single-mode or multi-mode)
The Keysight 86105C 9 GHz Optical / 20 GHz Oscilloscope is available for rent or lease at TRS-RenTelco with 24/7 expert support. Request a quote today.
