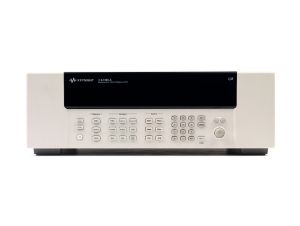

Keysight (Formerly Agilent) 34980A

Reduce testing costs and expedite test system development with the Agilent 34980A multifunction switch/measure unit. It is ideal for medium- to high-density switch/measure applications in automated testing, design verification, and data acquisition.

The 34980A is a compact, one-box system that's easy to set up and offers fast startup times.

Keysight 34980A Key Features and Specifications

• Eight-slot mainframes, choice of 21 mix-and-match plug-in modules
• Integrated 6.5-digit DMM and DC voltage measurement with 0.004 percent accuracy
• Math functions: Mx B for custom linear conversions and converting raw inputs
• Standard interfaces: Ethernet/LAN, USB, and GPIB connectivity to PC
• Interface languages: SCPI-1999, IEEE-488.2
• 4,096 matrix cross-points in one mainframe or up to 560 two-wire multiplexer channels
• System switching to 26.5GHz, digital I/O, counter/totalizer functionality, and D/A convertors
• Scans up to 1,000 channels per second
• Scanning inputs: Analog 34921A, 34922A, 34923A, 34924A, and 34925A channels
• Scanning inputs: Digital 34950A/52A digital in and totalize
• Store up to 500,000 readings with a timestamp
• Easily connect with external instruments, such as DMMs, oscilloscopes, and power supplies
• LXI class C compliant
• Standard connectors and software drivers, web browser interface, and computer standard I/O for easy integration
• In-rack calibration for reduced maintenance time
• Standard 50-pin or 78-pin D-sub connectors and cables at low cost
• DMM measurement accuracies include the switch for easy calculations
• Low EMI and efficient system cooling
• Predict end-of-life with relay counters
• Easily collect and analyze data with the free BenchLink Data Logger software
• Access results on any operating system using the built-in web interface without the need for any specialized software
• Get optimal throughput on switch closure time by switching signals to the optional internal DMM

Keysight 34980A Remote Access and Control

The built-in web browser helps setup, troubleshoot, and maintain the system remotely to:

• View and modify instrument setup
• Open, close, or monitor switches
• Send SCPI commands
• Define and execute switch sequences and switch scans
• View error queue
• Get status reports on relay counts and firmware revisions

Keysight 34980A Multifunction Switch Measure Unit Applications

You can use the 34980A multifunction switch measure unit in medium- to high-density switching/measurement applications, such as functional testing, data acquisition, and design verification. Switch the signals for the right measurement device without compromising on signal integrity. Use data logging to measure soil moisture, road traffic, tank levels, humidity, wind speed, solar radiation, and temperature.

Rent or lease the Keysight 34980A multifunction switch measure unit online at TRS-RenTelco. We calibrate all test equipment in our ISO/IEC 17025:2017-certified laboratory. Get T&M equipment with 24/7 customer support and fast shipping options across the US.

Call us at 800.874.7123 to get a price quote.
