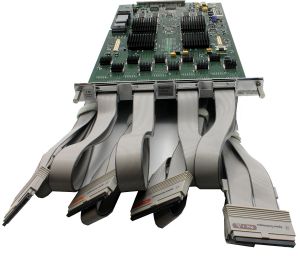

Keysight (Formerly Agilent) 16950A
68 Channel 600 MHz State, 4 GHz Timing Logic Analyzer Module
On Order: 0
Warranty: 12 Months
Buy New
- 68 channels
- 4 GHz (250 ps) timing zoom with 64K memory depth
- 600 MHz / 1.2 GHz (full / half-channel) conventional timing with deep memory
- 600 MHz transitional timing
- Selectable memory depths of 256K, 1M, 4M, 16M, 32M, or 64M
- Supports clock rates up to 600 MHz
- Supports data rates up to 800 Mb/s
- Comprehensive single-ended threshold support (-3V to 5V in 10 mV increments)
- Eyefinder automatically adjusts setup and hold for accurate measurements on high-speed buses
- Eye scan mode provides rapid multi-channel signal integrity characterization
- Configurations
- Resources
001
See Configuration Details
-
001
Increase acquisition memory depth to 1M
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER- Interconnect cables (Set of 2)
Qty: 1 -
NO/VER-MAIN CABLE
-
NO/VER -Master Expansion Cable (Obsolete)
Qty: 1 -
NO/VER-PROBE PIN KIT, 2 pins/kit **These are no longer available from OEM. Use new P/N E5382-82103.
-
LAB/VER-High Frequency Probing Kit (4 Resistive leads (red) and 4 solder down grounds)
-
NO/VER GRABBER CLIP KIT (20 PER KIT)
-
NO/VER- Ground Lead Kit (20 EA)
-
SW-Install Manual on CD for 16900 series
Qty: 1 -
SW-Logic Analysis SW on DVD VER 5.90.1104
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
