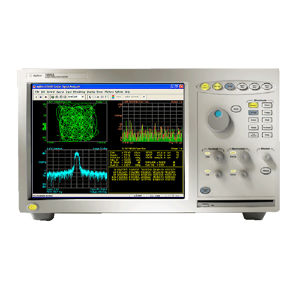

Keysight (Formerly Agilent) 16902A
6 Slot Logic Analyzer Mainframe
Rent or Lease
Make system-level debugging of digital designs easy with the Keysight 16902A logic analysis system. It provides accurate measurements for complex circuits and ensures high-performance to meet your toughest digital debugging problems. Customize this expandable system to suit your specific needs with probing, high-performance measurement modules, and post-processing analysis tools.
Keysight (Formerly Agilent) 16902A - Features and Specifications
- Power: 115/230 V, 48 to 66 Hz, 1300 W max
- Multi-frame Pro
- 6-Slot Logic Analysis System Mainframe with Built-in Touch Display
Measurement Flexibility (Configuration)
- Use frame individually or connect together for complex, multi-bus analysis
- PCI expansion slots: 1 full profile, 1 low profile
- Supports timing/state analyzers and pattern generator
User Interface
- 12.1-inch color touch screen display, 800 x 600 resolution
- Data views: waveform/chart, listing, packet viewer, source code, compare
Connectivity
- I/O Ports: Two USB 1.1, parallel, serial, external video, calibration BNC, Clock in BNC
- LAN: 10/100 BaseT (optional Gbit LAN)
- View Scope integrates time-correlated logic analyzer & scope waveforms into single, waveform display
- Interface to other instruments: Trigger In/Out, Target control port
Buy, rent or lease the Keysight (Formerly Agilent) 16902A logic analysis system with 365-day support at TRS-RenTelco. Contact us to find out more or request pricing today.
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Logic Analyzer Recovery DVD (16900A and 16902A only _ WIN XP Pro_ Through 10-Jan-2007) *May replace 16900-14117
Qty: 0 -
NO/VER-Special Notched Power Cord (Sub 8120-5395)
Qty: 0 -
NO/VER -Target control cable
Qty: 1 -
NO/VER- Accessory Pouch
Qty: 1 -
NO/VER - KEYED POWER CORD *Can use TEK sub p/n 161-0213-00 if you don't need right angle.
Qty: 1 -
SW-Install Manual on CD for 16900 series
Qty: 1 -
NO/VER Filler Panel for 16902B
Qty: 5 -
NO/VER-Keyboard-USB
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
SW-Logic Analysis SW on DVD VER 5.90.1104
Qty: 1
