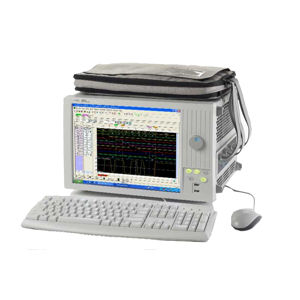

Keysight (Formerly Agilent) 16806A
204-Channel Portable Logic Analyzer
Rent or Lease
Logic Analyzer Configuration * 15-inch (38.1 cm) color display with touch screen available * 204-channel portable logic analyzer with up to 32 M acquisition memory depth * Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments) Timing Analysis (Asynchronous Sampling) * 4 GHz (250 ps) timing zoom with 64 K memory * 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory * 500 MHz transitional timing State Analysis (Synchronous Sampling) * State clock rates up to 450 MHz * Data rates: up to 500 Mb/s * Automated threshold/sample position setup for accurate measurements on high-speed buses * Simultaneous eye diagrams on all channels identify problem signals quickly Configuration Considerations * Selectable memory depths: 1 M, 4 M, 16 M, 32 M * Compatible with 40-pin logic analyzer probes
Read More
- Configurations
- Resources
001, 103
See Configuration Details
-
001
1MB Memory
-
103
Touch Screen
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER- Cable, Y type for 2 pods, input data, **Usually attached to asset.**
Qty: 6 -
MAN-Probing Solutions Card
Qty: 1 -
NO/VER- Accessory Pouch
Qty: 1 -
NO/VER-PS2 Keyboard
Qty: 1 -
NO/VER- USB OPT MOUSE (CDW PN# 2086051 @ $7.75/ea)
Qty: 1 -
SW-Logic Analysis SW on DVD VER 5.90.1104
Qty: 1 -
MAN- Installation/Quick Start Guide for 16800 Series Portable Logic Analyzers.
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
