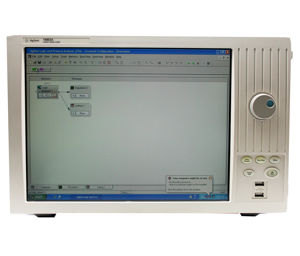

Keysight (Formerly Agilent) 16802A
68-Channel Portable Logic Analyzer
On Order: 0
Warranty: 12 Months
Buy New
The Keysight 16802A is part of the brand's 16800 series of logic analyzers. The 16802A is a portable logic analyzer that combines logic analysis solutions with pattern generation, application software, and cutting-edge probing capabilities in one dynamic package.
Logic Analyzer Configuration
- 15-inch (38.1 cm) color display with touch screen available
- 68-channel portable logic analyzer with up to 32 M acquisition memory depth
- Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
Timing Analysis (Asynchronous Sampling)
- 4 GHz (250 ps) timing zoom with 64 K memory
- 1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
- 500 MHz transitional timing
State Analysis (Synchronous Sampling)
- State clock rates up to 450 MHz
- Data rates: up to 500 Mb/s
- Automated threshold/sample position setup for accurate measurements on high-speed buses
- Simultaneous eye diagrams on all channels identify problem signals quickly
Configuration Considerations
- Selectable memory depths: 1 M, 4 M, 16 M, 32 M
- Compatible with 40-pin logic analyzer probes
