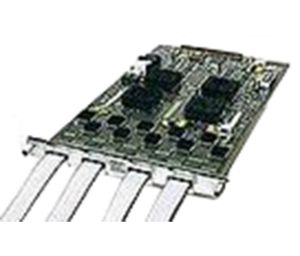

Keysight (Formerly Agilent) 16754A
68 Channel 600 MHz State, 4 GHz Timing Logic Analyzer Module
On Order: 0
Warranty: 12 Months
Buy New
The Keysight (formerly Agilent) 16754A state and timing analysis module with 4M memory, delivers the performance and capabilities you need to debug and validate digital systems using today's new high-speed system interconnects. The innovative %22eye scan%22 mode in the 16754A enables you to examine eye diagrams on multiple circuit nodes simultaneously, for a rapid, comprehensive view of signal integrity. Another feature, %22eye finder%22 automatically adjusts the position of the data valid window on every channel independently, ensuring the most reliable data capture on high-speed interconnect and buses. Features
%22Eye scan%22 feature saves you time and gives you confidence by measuring eye diagrams on hundreds of channels simultaneously without having to move probes
4 GHz %22timing zoom%22, (simultaneous timing analysis on all channels), with 64 K memory for unprecedented time coverage of high-resolution timing measurements
%22Eye finder%22 feature automatically adjusts data valid window position on each channel with ps resolution
Read More
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
MAN-16700B Series Installation Guide
Qty: 1 -
NO/VER- Interconnect cables (Set of 2)
Qty: 1 -
NO/VER -Master Expansion Cable (Obsolete)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Specs
