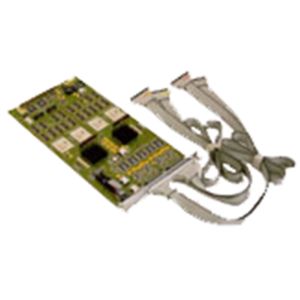

Keysight (Formerly Agilent) 16740A
68 Channel 200 MHz State, 2 GHz Timing Logic Analyzer
On Order: 0
Warranty: 12 Months
Buy New
The Keysight (formerly Agilent) 16740A logic analysis module offers industry-leading memory depth and performance for debugging complex digital designs.
Key Features:
- 1M of acquisition memory helps link a symptom of a problem to the cause
- Innovative hardware in the 16740A improves the system performance
- 200 MHz state speed supports today's and tomorrow's processors and technology trends
- 2 GHz timing zoom provides simultaneous high-speed state and timing acquisition through a single probe connection to the device under test
- Trigger technology combines new trigger functionality with a user interface that is easy to use and understand
- 68 to 340 channels of data capture on the same time base and trigger
- Eye finder automatically adjusts setup and hold for highest confidence in measurements on high-speed buses
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LAB/VER-Probe assembly-16 leads
Qty: 4 -
NO/VER- - PROBE KIT//PROBE LEADS,SET OF 5
Qty: 1 -
NO/VER- 2" Ground Leads (PK of 5)
Qty: 4 -
NO/VER-Master/Expansion cable (Installed on board) 2X10
Qty: 1 -
NO/VER-Grabber Kit Assy (Set of 20)
Qty: 4 -
NO/VER-Cable kit of 2ea. 2x40 jumper cable for multi-card installs, requires 1kit per expansion board Part# on jumpers is 16715-61603
Qty: 1 -
VISI TRIGGER QUICK REFERENCE FILE; (PDF 16715-92004)
Qty: 1 -
INSTALLATION GUIDE
Qty: 1 -
LAB/VER- Cable, Y type for 2 pods, input data, **Usually attached to asset.**
Qty: 2
