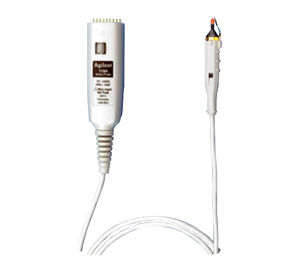

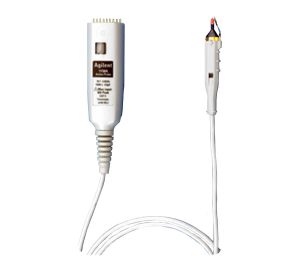

Keysight (Formerly Agilent) 1156A
1.5 GHz Active Probe
On Order: 0
Warranty: 12 Months
Buy New
The Keysight (formerly Agilent) 1156A active probe offers R & D engineers the performance they need to probe small geometries in hard-to-reach areas on the DUT. These probes were designed specifically for the Infiniium 54800 Series oscilloscopes. As the speeds in designs increase, there may be more overshoot, ringing, and other perturbations when connecting an oscilloscope probe. Probes form a resonant circuit where they connect to the device. If this resonance is within the bandwidth of the oscilloscope probe being used, it will be difficult to determine if the measurement perturbations are due to the circuit or the probe. This probe has overcome the resonance formed by the connection of a probe to a device.
Read More
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
MAN-Sheet, Recommended Probe Configuration
Qty: 1 -
MAN-1156A 1.5 GHz User's Guide
Qty: 1 -
NO/VER-Carry case
Qty: 1 -
NO/VER-Ground blade assembly
Qty: 12 -
NO/VER- Offset ground pin
Qty: 12 -
LAB/VER-130 OHMS RESISTIVE SIGNAL PIN (ORANGE) ORDER KIT #
Qty: 12 -
NO/VER-SOCKET-END 5CM GROUND LEAD
Qty: 2 -
NO/VER-SOCKET-END 5CM, 90 DEGREE GROUND LEAD
Qty: 2 -
LAB/VER-SOCKET-END 5 CM RESISTIVE SIGNAL LEAD
Qty: 2 -
NO/VER-Solderable-tip 5cm resistive signal lead
Qty: 2 -
NO/VER-Solderable-tip 5cm ground lead
Qty: 2 -
NO/VER-Socket-end 10cm resistive signal lead
Qty: 2 -
LAB/VER-SOLDERABLE THROUGH-HOLE GROUND PIN
Qty: 12 -
NO/VER-Solderable Connector, Header SMT ground pin
Qty: 12 -
NO/VER- Black Micro clip
Qty: 2
