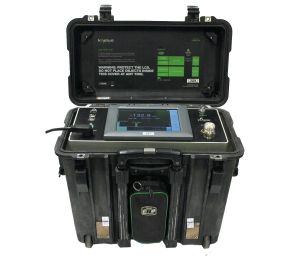

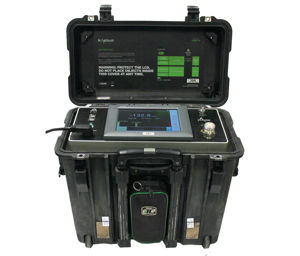

Kaelus (formerly Summitek) IQA-1921A
PIM Test Set 1900MHz / 2100MHz, 20W, 7/16 DIN (f)
On Order: 0
Warranty: 60 Months
Buy New
The iQA series is designed for those applications where greater operator control is desired or required to better analyze and understand cellular base station RF infrastructure quality and performance. These systems provide an interactive operator interface via a touch screen LCD display. As with the IMT series analyzers, the iQA analyzers perform an industry standard two tone PIM measurement at 20 Watts per carrier. The operator can select the frequency and power level of the test tones and measure reflected, IM3, IM5, and IM7 results. The iQA test sets are completely portable and have the ability to provide hard copy reports.
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Power Cord.
Qty: 1 -
LAB/VER-7/16 Din (m) to 7/16 Din (f) adapter (This is a spinner adapter.) (Hutton price $43.28 part number SAI-756404 - min order of 30) AKA 101102ULP FROM GAP, THIS WILL NOT WORK WITH SMK/IQA-xxB. (Talley, PN R/FP2RFD-1660-SS @ 47.44/each)
Qty: 1 -
SW- Summitek Manuals / Software Ver 6 and CSR NOTE
Qty: 1
