Fluke DSX-8000-ADD
Cat 5e/6/6A/8 or Class FA and I/II Copper modules for Versiv
Rent or Lease
Test and certify twisted-pair cabling for up to 40-gigabit Ethernet deployments and manage up to 12,000 Cat 6A test results with full graphics using the Fluke DSX-8000 copper module add-on for the DSX-8000 CableAnalyzer.
The Fluke DSX-8000 belongs to the Versiv cabling certification product family and can certify Cat 5e, Cat 6, Cat 6A, Cat 8, and Class I/II cabling up to 2,000MHz. The highly durable CableAnalyzer can withstand harsh conditions without compromising on performance.
The Fluke DSX-8000 complies with the Level VI/2G accuracy standards for accelerated system processes and reliable results. The CableAnalyzer features the ProjX management system that helps remove unnecessary, repetitive steps and the Taptive user interface gives you quick and efficient results with advanced data analysis and easy setup options.
Fluke DSX-8000 Features and Specifications:
- Test time: ?
- Cat 6A/Class EA: 8 seconds
- Cat 8/Class I/II: 16 seconds
- HDTDX/HDTDR diagnostic test times: approximately 3 seconds
- Internal memory: approximately 5,000 Cat 8 with plots; approximately 12,000 Cat 6A with plots
- Channel adapter range: 2GHz
- Permanent link adapter range: 2GHz
- Display: 5.7-inch LCD display with a projected capacitance touch screen
- Support test parameters: Wire map, length, propagation delay, delay skew, DC loop resistance, pair-to-pair
- Resistance unbalance, pair resistance unbalance, Iinsertion loss (attenuation), RL, CMRL, near end crosstalk, far end crosstalk, attenuation-to-crosstalk ratio (ACR-N), ACR-F (ELFEXT), power sum ACR-F (ELFEXT), power sum NEXT, power sum ACR-N, power sum alien NEXT, power sum alien attenuation NEXT ratio far end, CDNEXT, TCL, ELTCTL
The Fluke DSX CableAnalyzer DSX-8000 is available for rent, lease, or sale at TRS-RenTelco with 24/7 support. To get a quote, call us at 800.874.7123.
- Configurations
- Resources
--
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
NO/VER-Universal coupler
Qty: 2 -

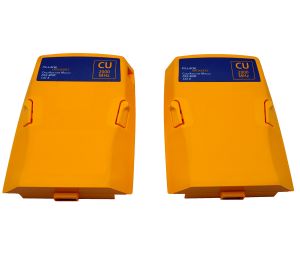

Copper Module -- set of 2 (*this is the asset)
Qty: 1 -
LAB/VER-DSX-CHA804 Channel adapter. Order as a pair. Issue individually.
Qty: 2 -
LAB/VER-50 ohm cm permanent link adapter.
Qty: 2 -
SW-Software and Manuals
Qty: 1 -
LAB/VER-DSX Link Terminator (Issued as each)
Qty: 2
